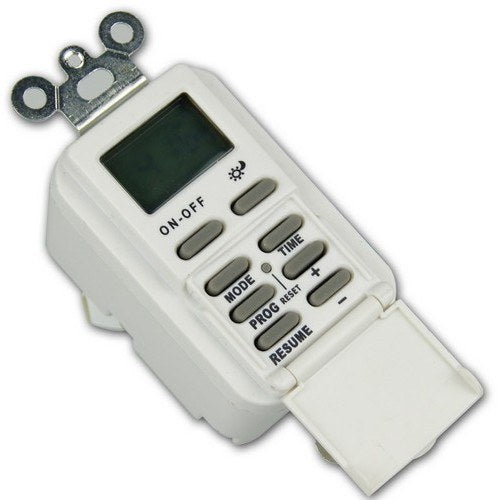

Morris 80516 7-Day Astronomic SunTracker Timer, 15A, White

Product Overview

The Morris 80516 is a white in‑wall 7‑day digital timer with SunTracker astronomic self‑adjusting control that follows local sunrise and sunset times after a one‑time location setup.

It supports up to seven on/off events per day, includes NiMH battery backup and manual override, is rated 15A at 120 VAC, and ships with a decorative wall plate.

Key Features

• SunTracker astronomic self‑adjusts to sunrise/sunset after one‑time location setup
• 7 on/off events per day and random setting function
• Automatic Daylight Saving Time adjustment
• General rating: 15A, 120 VAC, 60 Hz; tungsten/incandescent limited to 1000W (8A)
• Neutral required; NiMH battery backup and manual override
• Compatible with CFL and LED lamps; decorative wall plate included

What this timer does

The Morris 80516 is an in‑wall digital timer intended for scheduled control of lighting that adjusts ON/OFF times based on local sunrise and sunset after you enter your location.

It provides programmable daily events and features intended to automate lighting schedules.

• 7 on/off events per day
• Random setting function
• Manual override for temporary control without deleting programmed events

Electrical ratings and load compatibility

Check that the timer's electrical ratings match the circuit and loads you plan to control.

• General rating: 15A, 120 VAC, 60 Hz; 1/4 HP listed
• Tungsten/incandescent: 1000W (8A)
• Fluorescent ballast: 8A @ 125V
• Neutral conductor is required
• Compatible with CFL and LED lamps (per product data)

Mounting and wiring overview

The unit is designed to replace a standard single‑pole wall switch for indoor use and includes a decorative wall plate. Basic wiring requires line, load and neutral connections.

Installation should follow local electrical codes.

• Replaces an ordinary single‑pole wall switch
• Connect line, load and neutral; snap on included wall plate

Programming and features

After entering your geographic location once, the SunTracker astronomic feature automatically adjusts ON/OFF times to local sunrise and sunset and includes automatic Daylight Saving Time adjustment.

You can program up to seven on/off events per day; NiMH battery backup preserves settings and a manual override permits temporary control.

• SunTracker: self‑adjusting to sunrise/sunset after one‑time setup
• Automatic Daylight Saving Time adjustment
• NiMH battery backup to retain programming
• Manual override for temporary control

Before You Order

Confirm the model number and that the electrical ratings match your circuit and loads before ordering.

• Verify supply is 120 VAC, 60 Hz and load does not exceed listed ratings
• Ensure a neutral conductor is present in the switch box
• Plan for installation to follow local electrical codes

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 80516 7-Day Astronomic SunTracker Timer, 15A, White. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
