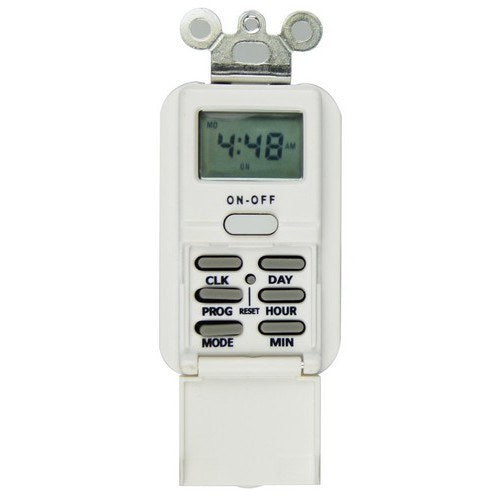

Morris 80511 7-Day In-Wall Digital Timer, 15A, White

(No Ratings)
SKU: 80511
Price: $28.55
Free shipping on orders over $1,500

Description

Product Overview

The Morris 80511 is a white, 7-day in-wall digital timer for scheduled control of lights, fans, exhaust, and pumps. It replaces an ordinary single-pole wall switch and supports 24-hour or weekly scheduling.

Set up to seven on/off events per day. The timer includes manual override, NiMH battery backup, and a decorative wall plate. It is compatible with CFL and LED lighting.

Key Features

  • Schedules up to 7 on/off events per day with 24-hour or 7-day control
  • Rated 15A at 120 VAC; also specified for 1/4 HP loads
  • Compatible with CFL and LED lighting
  • Includes manual override, NiMH battery backup, and decorative wall plate
  • Requires a neutral connection

Daily and weekly scheduling

The Morris 80511 provides 24-hour or 7-day control, with up to seven on/off events per day. It is intended for scheduled control of lights, fans, exhaust, and pumps, and includes a manual override.

Load ratings and lighting compatibility

The timer is rated 15A at 120 VAC, 60 Hz, with a 1/4 HP rating. Its listed load ratings include 1000W (8A) for tungsten/incandescent and 8A at 125V for fluorescent ballast. CFL and LED lighting compatibility is specified.

Wall-switch replacement and neutral requirement

The 80511 replaces an ordinary single-pole wall switch for indoor use. A neutral connection is required. A decorative wall plate is included.

Before You Order

Confirm that the Morris 80511 model and quantity meet your requirements before ordering.

  • The timer requires a neutral connection and is specified as a replacement for an ordinary single-pole wall switch.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 80511 7-Day In-Wall Digital Timer, 15A, White. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number80511
Type7-day in-wall digital timer
ColorWhite
General Rating15A, 120 VAC, 60 Hz
Motor Rating1/4 HP
Tungsten/incandescent rating1000W (8A)
Fluorescent ballast rating8A at 125V
Scheduling24-hour or 7-day control; up to 7 on/off events per day
Neutral RequiredRequired
Included FeaturesNiMH battery backup, manual override, decorative wall plate
Lighting compatibilityCFL and LED
ApplicationIndoor
