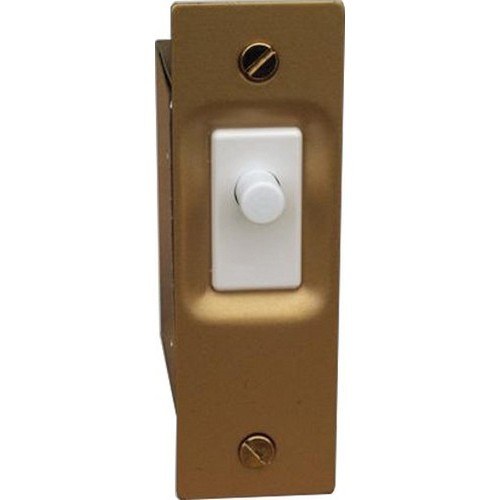

Morris 70420 Door Switch, SPST AC/DC, 10A

Product Overview

The Morris 70420 is a single-pole single-throw (SPST) door-actuated switch designed to turn a load on or off as a door opens or closes.

Rated for 10A at 125VAC and 10A at 250VAC, the 70420 is suitable for controlling closet, cabinet, or appliance lights and is UL listed.

Key Features

• SPST (single-pole, single-throw) AC/DC door switch
• Standard rating: 10A at 125VAC and 10A at 250VAC
• Automatically actuates on door open/close (plunger style)
• UL listed

How it works

The Morris 70420 operates as a door-actuated plunger switch that opens or closes a circuit depending on door position. When the door closes and depresses the plunger, the internal SPST contacts change state and control the connected load.

• SPST contact arrangement: single circuit on/off control
• Plunger-style actuator intended for frame-mounted installation

Electrical ratings

Use the 70420 within its verified current and voltage limits to ensure safe operation.

• 10A at 125VAC
• 10A at 250VAC
• Rated for AC and DC use as an SPST switch

Typical applications

The 70420 is intended for automatic switching where a door movement should control a light or other load.

• Closet and cabinet lighting
• Appliance interior lights
• Other simple on/off door-actuated circuits

Mounting and wiring guidance

Mount the switch so the plunger is depressed when the door is closed. Wire the switch in series with the load so the switch opens or closes the circuit as the door moves.

• Install in the door frame with actuator aligned to engage when the door is closed
• Wire the SPST switch in series with the load conductor
• Confirm wiring and installation comply with local electrical codes and safety standards

Before You Order

Confirm the model number and quantity required before ordering. Verify the 10A/125VAC or 10A/250VAC ratings match your load and that a plunger-style, frame-mounted door switch suits your application.

• Confirm the 70420 is the correct actuator style and electrical rating for your installation
• Ensure installation and wiring meet local codes; consult a licensed electrician if uncertain

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70420 Door Switch, SPST AC/DC, 10A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
