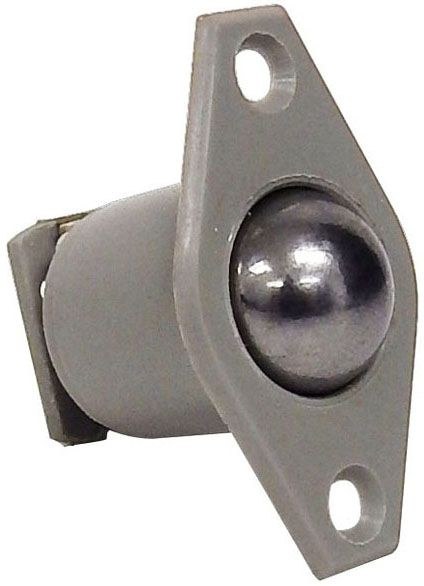

Morris 70336 Roller-Ball Door Contact, Make & Break Circuit

(No Ratings)
SKU: 70336
Price: $20.50
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70336 is a roller-ball door contact intended for low-voltage security, alarm, and signaling circuits. It provides a make-and-break (momentary) contact when the door or window moves.

Designed to operate when the roller ball is depressed from any angle, the 70336 is rated for 1 ampere at a maximum of 48 VAC and ships with two nickel wood screws for mounting.

Key Features

  • Make & break (momentary) circuit action: Door closed/opened = momentary on
  • Rated 1A current at up to 48VAC (low-voltage applications only)
  • Roller-ball actuated — operates when depressed from any angle
  • Includes two nickel wood screws for mounting

Function

The Morris 70336 is a mechanical door contact that changes state when its roller ball is depressed. It is configured as a make-and-break (momentary) contact: when the door or window moves and depresses the roller ball the contact closes (momentary on), and it opens again when the ball is released.

  • Actuation: roller ball depressed from any angle
  • Contact behavior: momentary on corresponding to door closed/opened

Applications

This contact is intended for low-voltage use in security and alarm systems, signaling circuits, or general low-voltage switching where a momentary contact is required.

  • Common uses: door and window alarm switches, buzzer/bell signaling
  • Not intended for line-voltage loads or heavy motor switching

Electrical ratings and load limits

Use the 70336 only within its specified electrical limits to ensure reliable operation and safety.

  • Rated current: 1 A
  • Maximum voltage: 48 VAC (low-voltage use only)

Mounting and installation

Mount the contact in the door jamb so the roller ball is depressed when the door is closed. Two nickel wood screws are provided for installation.

  • Mounting hardware included: two nickel wood screws
  • Recommended placement: in the jamb where roller ball will be engaged by door movement

Before You Order

Confirm the model number and quantity required before ordering. Verify that your application is low-voltage and within the 1 A / 48 VAC rating.

  • This product is for low-voltage signaling and alarm use only—not for line-voltage loads.
  • Check that a momentary (make & break) contact suits your control or alarm logic before purchase.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70336 Roller-Ball Door Contact, Make & Break Circuit. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU70336; '70336
Product typeRoller-Ball Door Contact
Circuit actionMake & Break (momentary)
OperationDoor Closed/Opened = Momentary On (buzzer/bell on then off)
Current rating1 A
Voltage rating48 VAC maximum (low voltage only)
Mounting TypeMounts in door jamb; two nickel wood screws included
