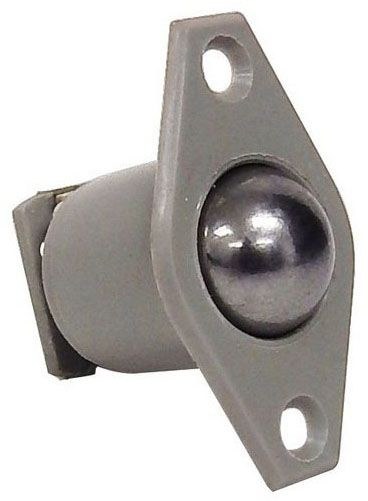

Morris 70334 Roller-Ball Door Contact, Open Circuit Off

(No Ratings)
SKU: 70334
Price: $17.75
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70334 is a low‑voltage roller‑ball door contact for security, alarm and signaling circuits. It is configured open‑circuit‑off: door closed = circuit on; door open = circuit off.

Rated for 2 A at up to 48 VAC and supplied with two nickel wood screws for jamb mounting. The roller‑ball actuator operates when depressed from any angle.

Key Features

  • Open‑circuit‑off configuration: door closed = circuit on; door open = circuit off
  • Roller‑ball actuator operates when depressed from any angle
  • Electrical rating: 2 A at 48 VAC maximum (low‑voltage use only)
  • Includes two nickel wood screws for mounting
  • Intended for doors, windows, and basic signaling circuits

Function and intended use

This roller‑ball contact provides a mechanical low‑voltage switching point for alarm, security and signaling circuits. The contact closes the circuit when the door is closed (roller depressed) and opens the circuit when the door is open.

  • Common uses: door and window position sensing and simple signaling applications
  • Actuator: roller‑ball that triggers from contact or pressure applied at various angles

Electrical rating and limits

The Morris 70334 is rated for switching up to 2 A at a maximum of 48 VAC and is intended for low‑voltage applications.

  • Maximum switching current: 2 A
  • Maximum voltage: 48 VAC
  • Not specified for high‑voltage or high‑current loads

Mounting and operation

Mount the contact in the door jamb so the roller ball is depressed when the door is closed. Two nickel wood screws are included for mounting to a wood jamb.

  • Included hardware: two nickel wood screws
  • Operation: roller depressed from any angle activates the contact
  • Position the contact so the roller aligns with the door edge for proper actuation

Applications and compatibility notes

Use this unit where a simple, low‑voltage door or window switching action is required. Verify that the open‑circuit‑off behavior matches your system input requirements before selection.

  • Described configuration: open‑circuit‑off — circuit is off when the door is open
  • Confirm whether your system expects normally open or normally closed inputs

Before You Order

Confirm the model and electrical requirements of your system before ordering to ensure compatibility with the 2 A / 48 VAC rating and the open‑circuit‑off configuration.

  • Verify whether your system expects a normally open or normally closed contact.
  • Confirm mounting surface is suitable for wood‑screw installation; alternate fasteners may be needed for other materials.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70334 Roller-Ball Door Contact, Open Circuit Off. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU70334; '70334
TypeRoller‑Ball Door Contact – Open Circuit Off
OperationDoor closed = circuit on; door open = circuit off
Current2 A
Voltage48 VAC maximum (low voltage)
Mounting TypeIncludes two nickel wood screws
