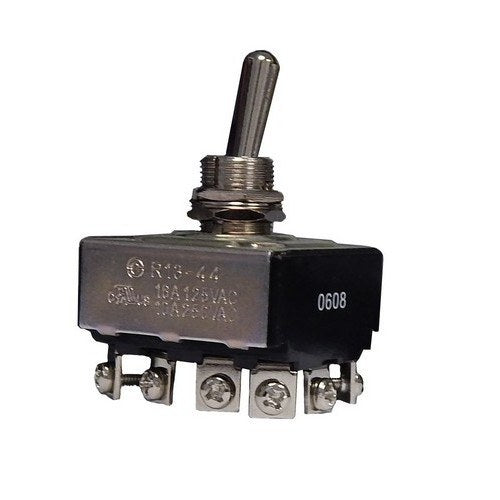

Morris 70305 Heavy-Duty Toggle Switch, 4PDT, On-On, 16A 125VAC
Morris 70305 Heavy-Duty Toggle Switch, 4PDT, On-On, 16A 125VAC
Regular price
$33.46
Regular price
Sale price
$33.46
SKU:70305
Quantity
Couldn't load pickup availability
Morris's 70305 is a heavy-duty four-pole double-throw (4pdt) toggle switch with a On-On action and 12 screw terminals. It is rated 16A 125VAC, 10A 250VAC with a 3/4 HP 125-250VAC motor load rating and mounts in a standard threaded bushing.
Key Features
- Solid Brass or Plated Contacts for Reliable Switching
- Threaded Bushing for Panel Mounting
- UL Listed
- 12 Screw Terminals
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 70305 |
| Type | Heavy-Duty Toggle Switch |
| Poles/Throw | Four-Pole Double-Throw (4PDT) |
| Function | On-On |
| Standard Rating | 16A 125VAC, 10A 250VAC |
| Motor Load | 3/4 HP 125-250VAC |
| Terminals | 12 Screw |
Applications
Used for multi-pole switching of three- and four-circuit loads in motor control and industrial equipment.
Installation
Mount via the threaded bushing and wire each pole to its screw terminals.
