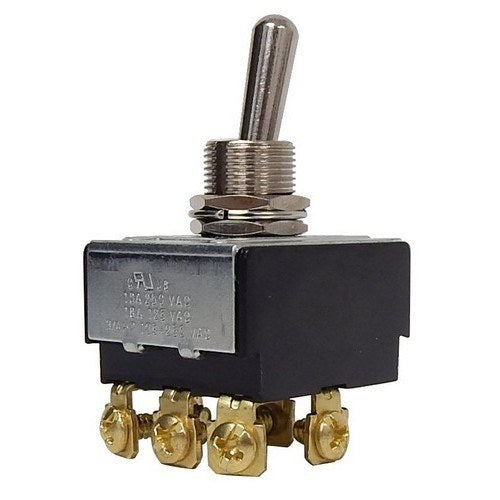

Morris 70301 Heavy-Duty Toggle Switch, 3PST, On-Off, 18A 125VAC

(No Ratings)
SKU: 70301
Price: $17.14
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70301 is a heavy-duty three-pole, single-throw (3PST) toggle switch with an on-off action. It is listed with standard ratings of 18A at 125VAC and 10A at 250VAC.

This switch has six screw terminals and a threaded bushing for panel mounting. Its listed motor load rating is 3/4 HP at 125–250VAC.

Key Features

  • Three-pole, single-throw switching with on-off action
  • Rated 18A at 125VAC and 10A at 250VAC
  • 3/4 HP motor load rating at 125–250VAC
  • Six screw terminals and threaded panel-mount bushing
  • Listed as UL Listed

Three-pole on-off switching

The Morris 70301 uses a three-pole, single-throw (3PST) configuration with an on-off action. The catalog description identifies it for multi-pole switching of three- and four-circuit loads in motor control and industrial equipment.

Electrical and motor load ratings

The listed standard ratings are 18A at 125VAC and 10A at 250VAC. The switch also has a listed motor load rating of 3/4 HP at 125–250VAC.

Panel mounting and screw terminals

The 70301 mounts through a threaded bushing and has six screw terminals. The product description specifies wiring each pole to its screw terminals.

Before You Order

Confirm the catalog number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70301 Heavy-Duty Toggle Switch, 3PST, On-Off, 18A 125VAC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70301
Product TypeHeavy-duty toggle switch
Poles and throwThree-pole, single-throw (3PST)
FunctionOn-off
Standard ratings18A at 125VAC; 10A at 250VAC
Motor load rating3/4 HP at 125–250VAC
Terminals6 screw terminals
Mounting TypeThreaded bushing for panel mounting
CertificationsUL Listed
