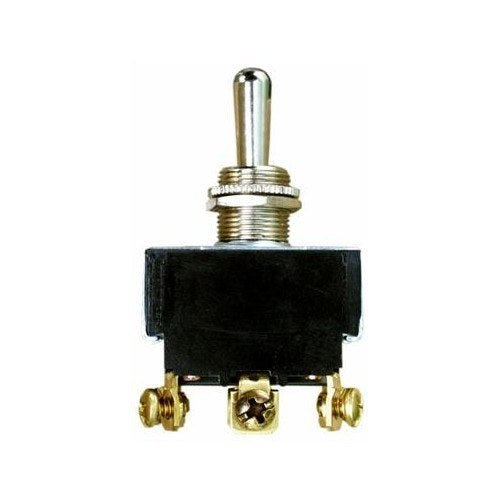

Morris 70300 Momentary-Contact Toggle Switch, DPDT, (On)-Off-(On), 20A

(No Ratings)
SKU: 70300
Price: $17.78
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70300 is a double-pole double-throw (DPDT) momentary-contact toggle switch with (On)-Off-(On) action. Parentheses indicate the momentary positions.

This switch has screw terminals and is rated 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC. Its motor-load rating is 1-1/2 HP at 125–250VAC.

Key Features

  • DPDT switching with spring-return momentary positions
  • Threaded bushing for panel mounting
  • Screw terminals
  • UL Listed

DPDT (On)-Off-(On) momentary action

The Morris 70300 uses a double-pole double-throw configuration with two momentary On positions and a center Off position. The toggle springs back from either momentary position.

Electrical and motor-load ratings

The listed standard ratings are 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC. The motor-load rating is 1-1/2 HP at 125–250VAC.

Panel mounting and screw terminals

The switch has a threaded bushing for panel mounting and screw terminals for connections.

Momentary switching applications

The Morris 70300 is identified for momentary DPDT control, including motor jogging, start/stop stations, and spring-return signaling.

Before You Order

Confirm that the Morris 70300 model and its listed electrical and motor-load ratings suit your requirements.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70300 Momentary-Contact Toggle Switch, DPDT, (On)-Off-(On), 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70300
Product TypeMomentary-contact toggle switch
Poles and throwsDPDT
Function(On)-Off-(On), momentary
Standard ratings20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor-load rating1-1/2 HP at 125–250VAC
TerminalsScrew
Mounting featureThreaded bushing
CertificationsUL Listed
