Morris 70299 Momentary-Contact Toggle Switch, DPDT, (On)-Off-(On), 20A

Product Overview

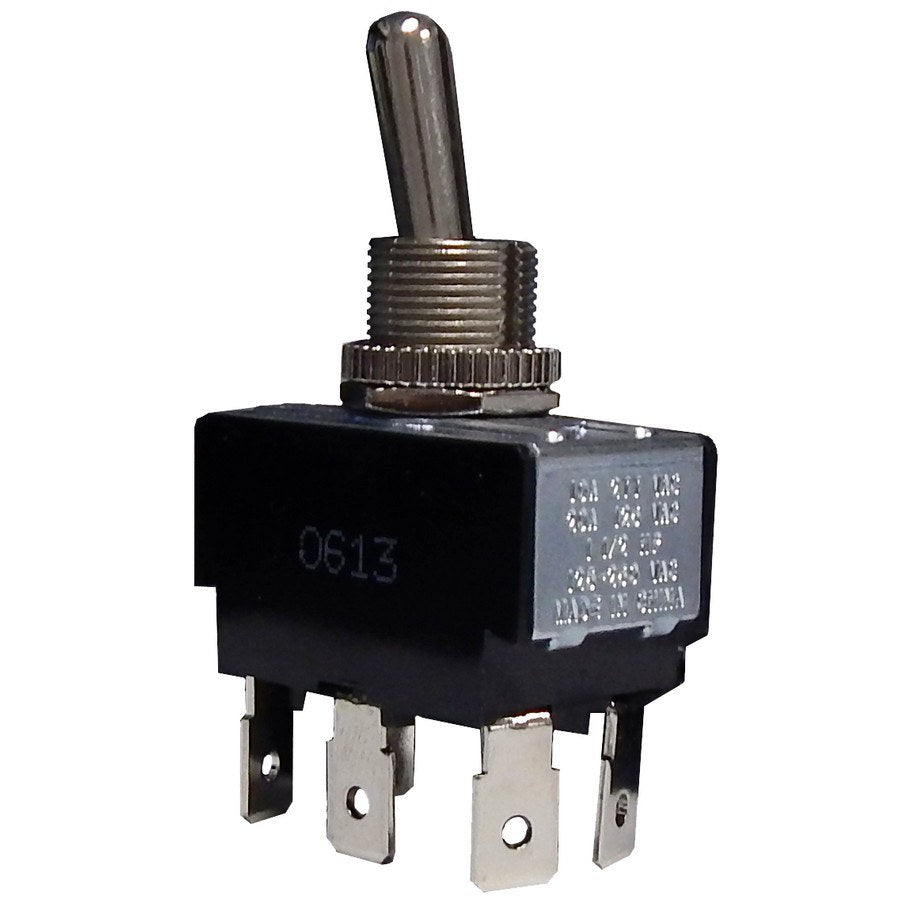

The Morris 70299 is a heavy-duty momentary-contact double-pole double-throw (DPDT) toggle switch with a spring-return (On)-Off-(On) action and quick-connect spade terminals.

It is rated 20A at 125VAC, 10A at 250VAC and 10A at 277VAC, with a 1-1/2 HP motor load rating for 125–250VAC applications. The switch mounts through a panel via a threaded bushing.

Key Features

• Momentary (spring-return) (On)-Off-(On) action for DPDT control
• Electrical ratings: 20A @ 125VAC; 10A @ 250VAC; 10A @ 277VAC
• Motor load rating: 1-1/2 HP at 125–250VAC
• Quick-connect spade terminals for fast wiring
• Threaded bushing for panel mounting
• Solid brass or plated contacts (as specified by manufacturer)
• UL listed

Function and Action

The Morris 70299 provides a momentary (spring-return) (On)-Off-(On) action. The parentheses indicate the On positions are momentary — the toggle returns to the center Off position when released. As a DPDT device, it switches two independent circuits simultaneously with a double-throw contact arrangement.

• Action: (On)-Off-(On) (momentary spring-return from the On positions)
• Configuration: Double-Pole Double-Throw (DPDT) — two poles, two throws each

Electrical Ratings and Motor Load

Use the published ratings to confirm suitability for your load. The 70299 is rated for general switching and has a dedicated motor rating for inductive loads.

• 20 A at 125 VAC
• 10 A at 250 VAC
• 10 A at 277 VAC
• Motor load: 1-1/2 HP at 125–250 VAC

Wiring and Mounting

The switch is designed for panel mounting with a threaded bushing and terminates with quick-connect spade terminals for fast field wiring. The toggle returns automatically from the momentary positions, simplifying start/jog controls and signaling circuits.

• Mounting: Threaded bushing for panel installation
• Terminals: Quick-connect spade terminals (male blade style) — use mating female quick-disconnect connectors sized to the terminal
• Operation note: Toggle is spring-return from momentary On positions

Typical Applications

The 70299 is intended for situations requiring a momentary DPDT action such as jogging motors, start/stop stations, spring-return signaling, and other control circuits where simultaneous switching of two circuits is needed.

• Motor jogging and momentary control
• Start/stop operator stations
• Signaling or interlock circuits requiring momentary contact

Before You Order

Confirm the model number and required quantity before ordering. Verify the electrical ratings, terminal style, and mounting method against your application requirements.

• Confirm compatibility with your system voltage and motor load requirements.
• Ensure you have the correct size female quick-disconnect connectors for the spade terminals.
• Panel cutout and bushing thread size should be verified from manufacturer documentation if precise mounting dimensions are required.
