Morris 70270 Momentary-Contact Toggle Switch, SPDT, On-Off-(On), 20A

(No Ratings)
SKU: 70270
Price: $9.14
Free shipping on orders over $1,500

Description

Product Overview

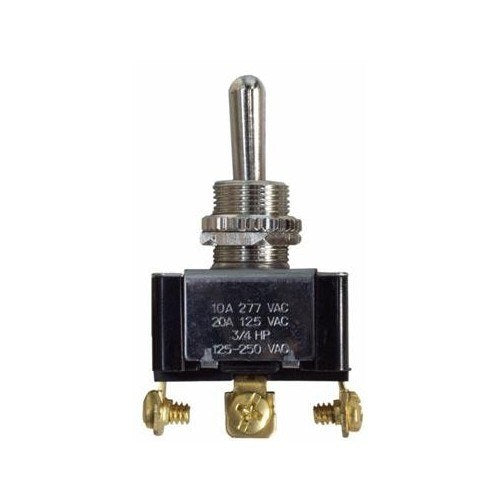

The Morris 70270 is a single-pole double-throw (SPDT) momentary-contact toggle switch with On-Off-(On) action. The parenthesized position is momentary: the toggle springs back when released.

It has screw terminals and a threaded bushing for panel mounting. Electrical ratings are 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC; its motor-load rating is 3/4 HP at 125–250VAC.

Key Features

  • SPDT contacts with On-Off-(On) momentary action
  • Spring return from the momentary position
  • Screw terminals and threaded panel-mount bushing
  • UL Listed

SPDT On-Off-(On) Momentary Action

The Morris 70270 has a single-pole double-throw configuration and On-Off-(On) action. The parentheses identify the momentary position, which returns when the toggle is released.

Electrical and Motor-Load Ratings

The switch is rated for different current levels at the listed AC voltages. Its stated motor-load rating is 3/4 HP at 125–250VAC.

  • 20A at 125VAC
  • 10A at 250VAC
  • 10A at 277VAC
  • 3/4 HP motor load at 125–250VAC

Panel Mounting and Screw Terminals

The 70270 is designed for panel mounting through its threaded bushing and uses screw terminals for electrical connections.

Momentary Control Applications

This switch is described for momentary single-pole control, including motor jogging, start/stop stations, and spring-return signaling within its stated ratings.

Before You Order

Confirm that the SPDT On-Off-(On) function and the switch's electrical or motor-load ratings match the intended circuit.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70270 Momentary-Contact Toggle Switch, SPDT, On-Off-(On), 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70270
Product TypeMomentary-contact toggle switch
Poles and throwsSPDT
Switch functionOn-Off-(On), momentary
Ampere Rating20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor-load rating3/4 HP at 125–250VAC
TerminalsScrew
Mounting featureThreaded bushing for panel mounting
CertificationsUL Listed
