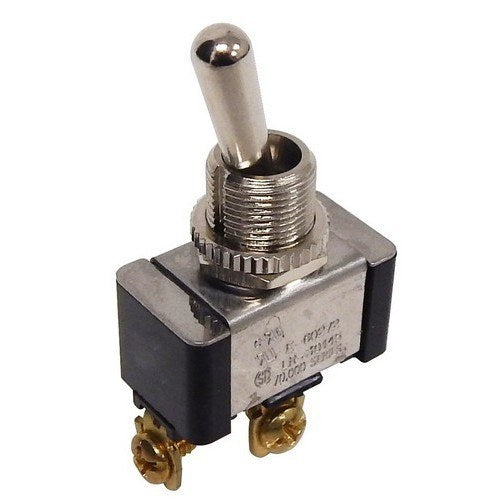

Morris 70252 Momentary-Contact Toggle Switch, SPST, On-Off, 20A

(No Ratings)
SKU: 70252
Price: $9.81
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70252 is a single-pole, single-throw (SPST) momentary-contact toggle switch with On-Off action. Its toggle returns from the momentary position by spring action.

The switch has screw terminals and a threaded bushing for panel mounting. Its electrical ratings vary by voltage, with a separate motor-load rating.

Key Features

  • SPST configuration with momentary On-Off action
  • Spring-return toggle
  • Screw terminals
  • Threaded bushing for panel mounting
  • UL Listed

How the Morris 70252 Toggle Switch Operates

The Morris 70252 is an SPST momentary-contact switch with On-Off action. The toggle springs back from the momentary position, making this model suitable for control that requires spring-return operation.

  • Single-pole, single-throw configuration
  • Momentary-contact action

Electrical and Motor-Load Ratings

The 70252 is rated 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC. Its listed motor-load rating is 3/4 HP at 125–250VAC.

Panel Mounting and Screw Terminals

The switch uses a threaded bushing for panel mounting and screw terminals for connections. The toggle returns from the momentary position by spring action.

Momentary Switching Applications

The Morris 70252 is described for momentary SP control, including motor jogging, start/stop stations, and spring-return signaling. Select it according to the applicable voltage and load rating.

Before You Order

Confirm that the Morris 70252 model and its voltage-specific current or motor-load rating match the intended application.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70252 Momentary-Contact Toggle Switch, SPST, On-Off, 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70252
Switch typeMomentary-contact toggle switch
Poles and throwSingle-pole, single-throw (SPST)
FunctionOn-Off, momentary
Ampere Rating20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor-load rating3/4 HP at 125–250VAC
TerminalsScrew
Mounting featureThreaded bushing for panel mounting
CertificationsUL Listed
