Morris 70177 Lighted Rocker Switch, DPST, On-Off, 20A

Product Overview

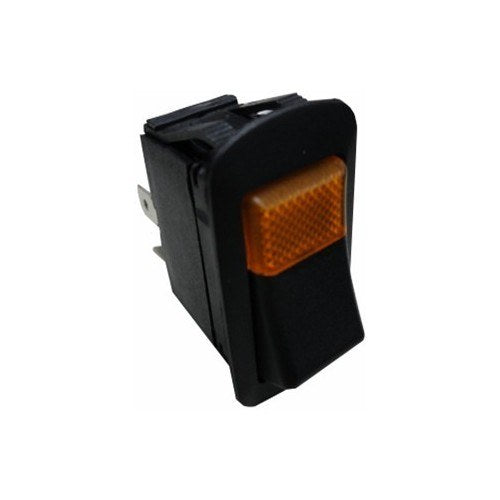

The Morris 70177 is a panel‑mount, lighted double‑pole single‑throw (DPST) rocker switch with an On‑Off action and a black actuator.

It features four quick‑connect spade terminals, UL listing, and the electrical ratings shown for AC and DC loads, including a listed motor load rating.

Key Features

• DPST (double‑pole single‑throw) On‑Off rocker action
• Illuminated actuator (lighted when On)
• Electrical ratings: 20A @ 125VAC, 10A @ 250VAC, 21A @ 14VDC (general‑use: 16A @ 125VAC, 10A @ 277VAC)
• Four quick‑connect spade terminals
• Panel‑mount body with black rocker actuator
• 3/4 HP motor load rating
• UL listed

Function and basic operation

The Morris 70177 is a double‑pole single‑throw (DPST) rocker switch that provides On‑Off control of two isolated circuits together. The actuator includes illumination that is described as lit when the switch is in the On position, providing a visible indication of the On state.

• DPST switches two poles simultaneously with one rocker movement
• Illuminated actuator indicates the On state

Electrical ratings and load capabilities

Refer to the listed electrical ratings to determine suitability for your application. The product lists both standard and general‑use ratings and includes a motor load rating.

• Standard ratings: 20A @ 125VAC, 10A @ 250VAC, 21A @ 14VDC
• General‑use ratings: 16A @ 125VAC, 10A @ 277VAC
• Motor load: 3/4 HP

Connections and panel installation

The switch is a panel‑mount design that snaps into a rectangular cutout. Electrical connections are made via four quick‑connect spade terminals.

• Four quick‑connect spade terminals for wiring
• Panel‑mount snap‑in rectangular cutout

Mechanical details

This model has a black rocker actuator, a panel‑mount body, and is described as UL listed. It is configured with four terminals to support double‑pole switching.

• Black rocker actuator
• Panel‑mount body
• UL listed

Before You Order

Confirm the model number and the electrical ratings match your application's requirements.

• Verify voltage and current requirements against the listed ratings.
• Confirm your panel accepts a rectangular snap‑in rocker switch and that quick‑connect spade terminals are compatible with your wiring.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70177 Lighted Rocker Switch, DPST, On-Off, 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
