Morris 70174 Rocker Switch, DPDT, On-Off-On, 20A

(No Ratings)
SKU: 70174
Price: $20.21
Free shipping on orders over $1,500

Description

Product Overview

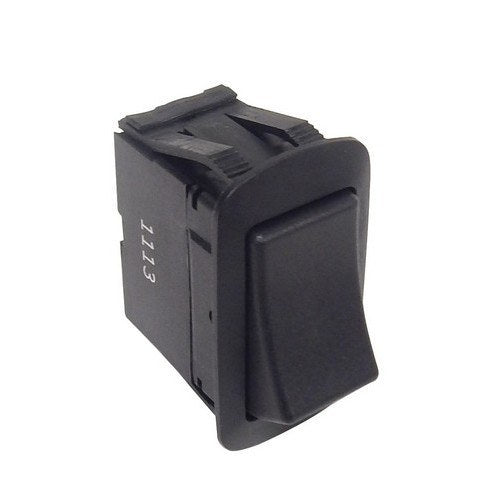

The Morris 70174 is a double-pole double-throw (DPDT) rocker switch with On-Off-On action. It has a black actuator, six quick-connect spade terminals and a panel-mount body.

Its listed ratings include 20A at 125VAC, 10A at 250VAC and 21A at 14VDC. Separate general-use ratings are 16A at 125VAC and 10A at 277VAC; the motor load rating is 3/4 HP.

Key Features

  • DPDT configuration with On-Off-On action
  • Six quick-connect spade terminals
  • Black rocker actuator and panel-mount body
  • Electrical ratings include 20A at 125VAC and a 3/4 HP motor load rating
  • UL listed

DPDT On-Off-On switching

The 70174 combines a double-pole double-throw configuration with On-Off-On action. It is described for panel-mount DP on/off control of equipment, vehicles and machinery.

Electrical ratings

The switch has separate standard and general-use electrical ratings, plus a stated motor load rating. Use the applicable rating for the intended circuit and load.

  • Standard ratings: 20A at 125VAC, 10A at 250VAC and 21A at 14VDC
  • General-use ratings: 16A at 125VAC and 10A at 277VAC
  • Motor load: 3/4 HP

Panel mounting and connections

The Morris 70174 has a panel-mount body and six quick-connect spade terminals. The listed installation method is to snap the rocker into a rectangular panel cutout and connect the load to the spade terminals.

Before You Order

Confirm that the DPDT On-Off-On configuration and the applicable electrical or motor load rating meet the requirements of your application.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70174 Rocker Switch, DPDT, On-Off-On, 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70174
Product TypeRocker switch
Poles and throwsDouble-pole double-throw (DPDT)
ActionOn-Off-On
ActuatorBlack rocker
Mounting TypePanel mount
Terminals6 quick-connect spade terminals
Standard ratings20A at 125VAC; 10A at 250VAC; 21A at 14VDC
General-use ratings16A at 125VAC; 10A at 277VAC
Motor Load3/4 HP
CertificationsUL listed
