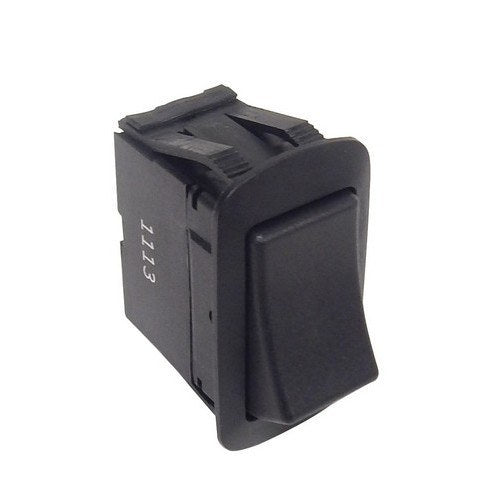

Morris 70172 Rocker Switch, DPST, On-Off, 20A
SKU: 70172
Price:
$13.75
Free shipping on orders over $1,500
Description
Morris's 70172 is a double-pole single-throw (dpst) rocker switch with a On-Off action, a black actuator, and quick-connect spade terminals. It is rated 20A at 125VAC, 10A at 250VAC, and 21A at 14VDC (16A 125VAC, 10A 277VAC general use) with a 3/4 HP motor load rating.
Key Features
- Black Rocker Actuator
- Quick-Connect Spade Terminals
- Panel-Mount Body
- UL Listed
- 4 Terminals
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 70172 |
| Type | Rocker Switch |
| Poles/Throw | Double-Pole Single-Throw (DPST) |
| Function | On-Off |
| Standard Rating | 20A 125VAC, 10A 250VAC, 21A 14VDC |
| General-Use Rating | 16A 125VAC, 10A 277VAC |
| Motor Load | 3/4 HP |
| Terminals | 4 Quick-Connect Spade |
Applications
Used for panel-mount dp on/off control of equipment, vehicles, and machinery up to 20A.
Installation
Snap the rocker into a rectangular panel cutout and connect the load to the spade terminals.
