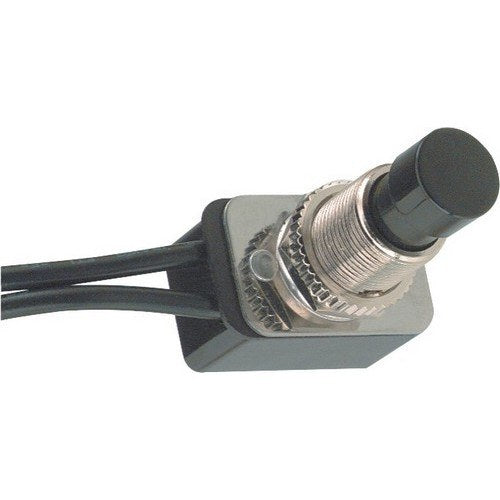

Morris 70160 Maintained Contact Push-Button Switch, SPST On-Off, Black

(No Ratings)
SKU: 70160
Price: $9.97
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70160 is a maintained-contact push-button switch for On-Off control. Its single-pole, single-throw (SPST) configuration and black finish identify this specific model.

The switch has 6-inch wire leads and is UL Listed. Its electrical ratings include 8A at 125VAC, 4A at 250VAC, and a 1/3 HP motor load rating at 125VAC.

Key Features

  • Maintained-contact push-button operation with On-Off function
  • SPST configuration and black finish
  • 6-inch wire leads
  • Rated 8A at 125VAC and 4A at 250VAC
  • 1/3 HP motor load rating at 125VAC; UL Listed

On-Off operation and SPST configuration

The Morris 70160 uses maintained-contact push-button operation: it is specified as an On-Off switch rather than a momentary-contact switch. Its SPST arrangement provides a single-pole, single-throw switching configuration.

Electrical and motor load ratings

The switch is rated for 8A at 125VAC or 4A at 250VAC. Its stated motor load rating is 1/3 HP at 125VAC.

Applications and panel mounting

This push-button switch is described for On-Off control of appliances, fixtures, and equipment control panels. It is intended to mount in a round panel hole, with its two wire leads connected in series with the load.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70160 Maintained Contact Push-Button Switch, SPST On-Off, Black. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70160
TypePush-button switch
Contact styleMaintained contact
Poles/throwSPST
FunctionOn-Off
FinishBlack
Standard Rating8A at 125VAC; 4A at 250VAC
Motor Load1/3 HP at 125VAC
Wire Lead6-inch wire leads
CertificationsUL Listed
