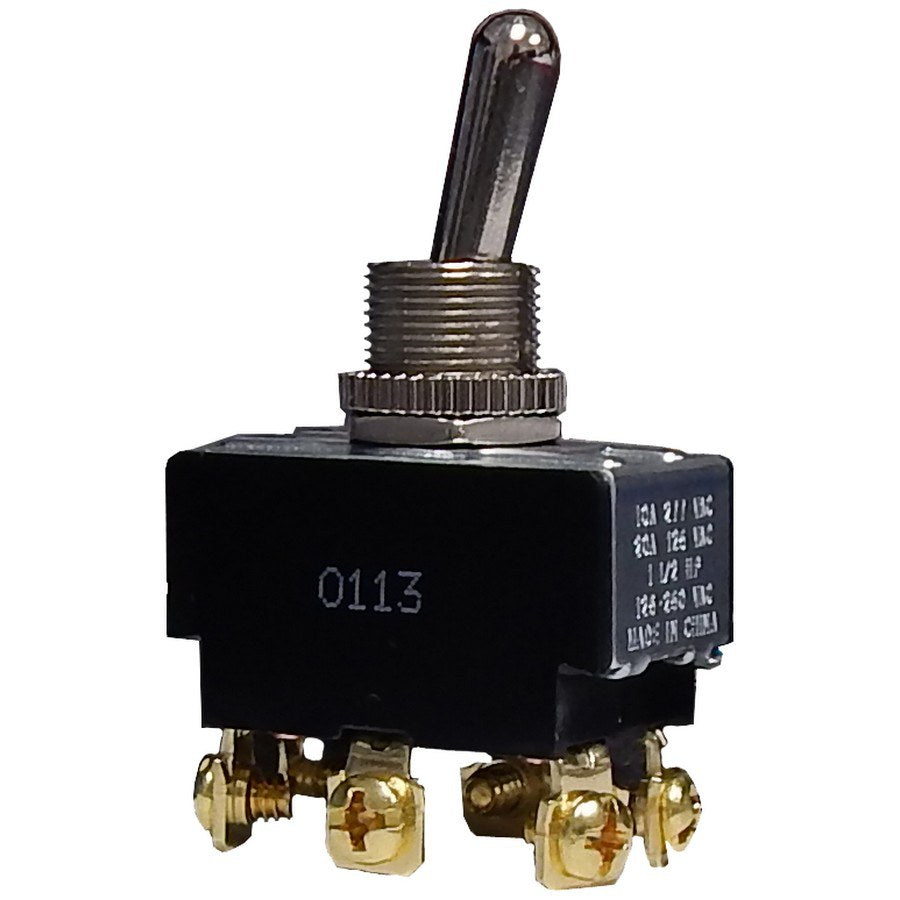

Morris 70135 Momentary-Contact Toggle Switch, DPDT, On-On, 20A
SKU: 70135
Price:
$13.90
Free shipping on orders over $1,500
Description
Morris's 70135 is a heavy-duty momentary-contact double-pole double-throw (dpdt) toggle switch with a On-On action (parentheses indicate the momentary position) and screw terminals. It is rated 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC, with a 1-1/2 HP 125-250VAC motor load rating.
Key Features
- Solid Brass or Plated Contacts for Reliable Switching
- Threaded Bushing for Panel Mounting
- UL Listed
- Spring-Return Momentary Contact
- Screw Terminals
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 70135 |
| Type | Momentary-Contact Toggle Switch |
| Poles/Throw | Double-Pole Double-Throw (DPDT) |
| Function | On-On (Momentary) |
| Standard Rating | 20A 125VAC, 10A 250VAC, 10A 277VAC |
| Motor Load | 1-1/2 HP 125-250VAC |
| Terminals | Screw |
Applications
Used for momentary dp control such as jogging motors, start/stop stations, and spring-return signaling up to 20A.
Installation
Mount via the threaded bushing and wire the load to the screw terminals; the toggle springs back from the momentary position.
