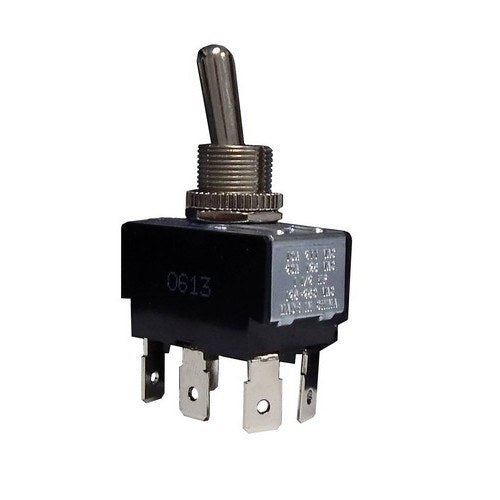

Morris 70131 Heavy-Duty Toggle Switch, DPDT, On-On, 20A

Product Overview

The Morris 70131 is a heavy‑duty double‑pole double‑throw (DPDT) toggle switch with an On‑On action designed for industrial and commercial control applications.

It features a threaded bushing for panel mounting, quick‑connect spade terminals, and electrical ratings suitable for many motor, equipment, and lighting loads.

Key Features

• Double‑Pole Double‑Throw (DPDT) — On‑On function
• Electrical ratings: 20A at 125VAC; 10A at 250VAC; 10A at 277VAC
• Motor load: 1‑1/2 HP at 125–250VAC
• Quick‑connect spade terminals for fast wiring
• Threaded bushing for standard panel mounting
• UL listed

Switch function and intended use

The Morris 70131 is a double‑pole double‑throw (DPDT) toggle switch with an On‑On action. Each pole switches between two output positions when the toggle is moved, allowing reversal or alternate routing of two circuits.

• Suitable for reversing motor direction or selecting between two circuits for each pole
• Described application: heavy‑duty control of motors, equipment, and lighting up to the listed ratings

Electrical ratings and motor load capacity

Use the switch where its amperage and motor horsepower ratings meet the load requirements. Ratings are provided for different voltage levels and for motor loads.

• Standard rating: 20A at 125VAC
• Standard rating: 10A at 250VAC
• Standard rating: 10A at 277VAC
• Motor load rating: 1‑1/2 HP at 125–250VAC

Mounting and terminal connections

The 70131 mounts through a panel using its threaded bushing and accepts quick‑connect spade terminals for wiring. These features enable straightforward panel installation and rapid field connections.

• Mounting: threaded bushing — fits a standard 1/2" panel hole
• Terminals: quick‑connect spade terminals (for use with compatible spade connectors)

Certifications and materials

The switch is listed by UL. Contact materials are specified in product literature as solid brass or plated contacts for reliable switching performance.

• UL listed
• Contacts: solid brass or plated (as specified by catalog)

Before You Order

Confirm the model number and quantity required before ordering. Verify that the switch's voltage, ampere, and motor ratings meet your application's requirements and that spade terminal connectors and a 1/2" panel hole are compatible with your installation.

• Confirm compatibility with your circuit voltages and motor load.
• Ensure you have the correct spade connector sizes for the quick‑connect terminals.
• Verify panel cutout dimensions and available panel thickness for the threaded bushing.
