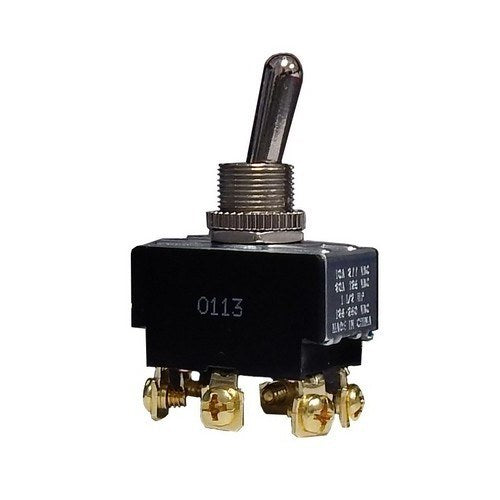

Morris 70130 Heavy-Duty Toggle Switch, DPDT, On-On, 20A

(No Ratings)
SKU: 70130
Price: $12.35
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70130 is a heavy-duty double-pole, double-throw (DPDT) toggle switch with an On-On function. It has screw terminals and a threaded bushing for panel mounting.

Its electrical ratings are 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC. The listed motor-load rating is 1-1/2 HP at 125–250VAC.

Key Features

  • DPDT configuration with On-On action
  • Screw terminals
  • Threaded bushing for panel mounting
  • UL Listed

DPDT On-On switching function

The Morris 70130 uses a double-pole, double-throw configuration with an On-On action. This identifies the switch's arrangement and function; confirm that they match the control requirements of the equipment.

Electrical and motor-load ratings

The listed standard ratings vary by voltage. The separate motor-load rating is specified for 125–250VAC.

  • 20A at 125VAC
  • 10A at 250VAC
  • 10A at 277VAC
  • Motor load: 1-1/2 HP at 125–250VAC

Panel mounting and screw terminals

The switch has a threaded bushing for panel mounting and screw terminals for connections. The stated panel-hole size is 1/2 inch.

Intended applications

The 70130 is identified for heavy-duty control of motors, equipment, and lighting loads in industrial and commercial machinery, subject to its listed electrical and motor-load ratings.

Before You Order

Confirm that the DPDT On-On function, voltage-specific current rating, motor-load rating where applicable, and 1/2-inch panel-hole size suit your requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70130 Heavy-Duty Toggle Switch, DPDT, On-On, 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70130
SKU'70130
Product TypeHeavy-duty toggle switch
Poles and throwsDouble-pole, double-throw (DPDT)
FunctionOn-On
Standard ratings20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor-load rating1-1/2 HP at 125–250VAC
TerminalsScrew
Mounting TypeThreaded bushing; 1/2-inch panel hole
CertificationsUL Listed
