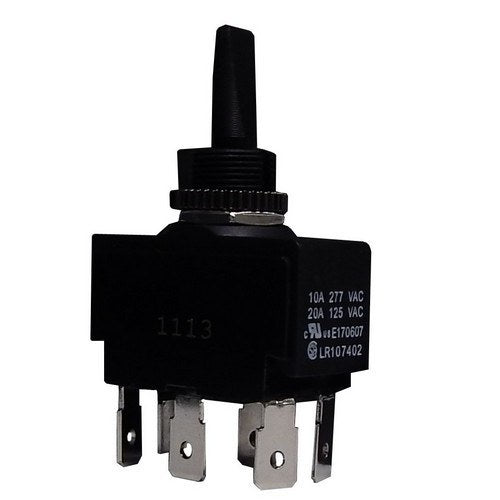

Morris 70127 Momentary-Contact Toggle Switch, DPDT, (On)-OFF-(On), 20A

(No Ratings)
SKU: 70127
Price: $17.42
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70127 is a double-pole, double-throw (DPDT) toggle switch with spring-return momentary action. Its (On)-OFF-(On) configuration has two momentary positions separated by an OFF position.

This switch has quick-connect spade terminals and is rated for 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC. Its listed motor load rating is 1-1/2 HP at 125–250VAC.

Key Features

  • DPDT configuration with (On)-OFF-(On) momentary action
  • Spring return from either momentary position
  • Quick-connect spade terminals
  • Threaded bushing for panel mounting
  • UL Listed

DPDT (On)-OFF-(On) Momentary Action

The Morris 70127 provides double-pole, double-throw switching with a spring-return momentary position in each direction. The parentheses in (On)-OFF-(On) indicate that both ON positions are momentary; OFF is the center position.

Electrical and Motor Load Ratings

The 70127 is rated for different current levels at the listed AC voltages. Its motor load rating is specified separately.

  • 20A at 125VAC
  • 10A at 250VAC
  • 10A at 277VAC
  • 1-1/2 HP motor load at 125–250VAC

Momentary Control Applications

This switch is described for momentary DP control, including motor jogging, start/stop stations, and spring-return signaling. Confirm that the switch’s configuration and ratings suit the specific control circuit.

Panel Mounting and Terminal Type

The switch has a threaded bushing for panel mounting and quick-connect spade terminals. Its toggle returns from a momentary position when released.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70127 Momentary-Contact Toggle Switch, DPDT, (On)-OFF-(On), 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70127
TypeMomentary-contact toggle switch
Poles and throwsDPDT
Action(On)-OFF-(On), spring-return momentary
Current and voltage rating20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor Load1-1/2 HP at 125–250VAC
TerminalsQuick-connect spade
Mounting featureThreaded bushing
CertificationsUL Listed
SKU'70127
