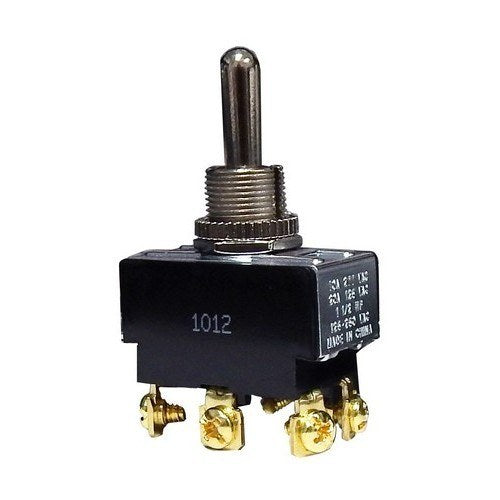

Morris 70110 Heavy-Duty Toggle Switch, DPDT, On-Off-On, 20A

(No Ratings)
SKU: 70110
Price: $12.35
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70110 is a heavy-duty double-pole double-throw (DPDT) toggle switch with an On-Off-On action. It has screw terminals and a threaded bushing for panel mounting.

Its listed ratings include 20A at 125VAC, 10A at 250VAC, 10A at 277VAC, and a 1-1/2 HP motor-load rating at 125–250VAC.

Key Features

  • DPDT switching with On-Off-On action
  • Screw terminals
  • Threaded bushing for panel mounting
  • UL listed

DPDT On-Off-On Switching and Ratings

The Morris 70110 provides double-pole double-throw switching with an On-Off-On action. Its standard electrical ratings are 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC.

The listed motor-load rating is 1-1/2 HP at 125–250VAC. Check the applicable load and voltage against these ratings when selecting the switch.

Panel Mounting and Screw Terminals

The switch mounts through a panel using its threaded bushing. The documented installation calls for a 1/2-inch panel hole, and connections are made at the screw terminals.

Applications

The Morris 70110 is described for heavy-duty DPDT control of motors, equipment, and lighting loads in industrial and commercial machinery, subject to its stated ratings.

Before You Order

Confirm that the DPDT On-Off-On action, electrical or motor-load rating, and panel-mount configuration match your application.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70110 Heavy-Duty Toggle Switch, DPDT, On-Off-On, 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70110
TypeHeavy-duty toggle switch
Poles and throwsDouble-pole double-throw (DPDT)
ActionOn-Off-On
Standard electrical rating20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor-load rating1-1/2 HP at 125–250VAC
TerminalsScrew
Mounting TypeThreaded bushing; 1/2-inch panel hole
CertificationsUL listed
