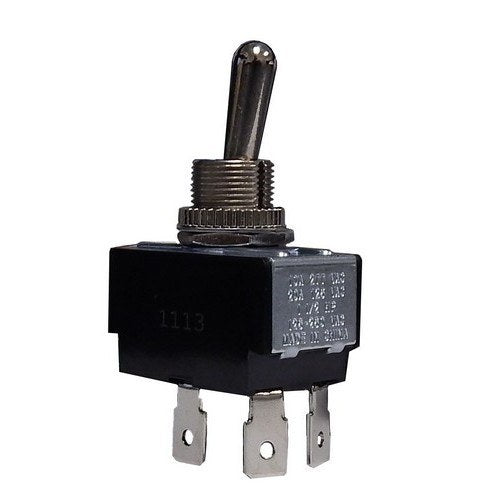

Morris 70101 Heavy-Duty Toggle Switch, DPST, On-Off, 20A

(No Ratings)
SKU: 70101
Price: $16.96
Free shipping on orders over $1,500

Description

Product Overview

The Morris 70101 is a heavy-duty double-pole, single-throw (DPST) toggle switch with On-Off action. It is designed for switching motor, equipment, and lighting loads in industrial and commercial machinery.

The switch has quick-connect spade terminals and a threaded bushing for panel mounting. Its stated electrical ratings vary by voltage, with a separate motor-load rating.

Key Features

  • DPST configuration with On-Off action
  • Standard ratings: 20A at 125VAC, 10A at 250VAC and 10A at 277VAC
  • Motor-load rating: 1-1/2 HP at 125–250VAC
  • Threaded bushing for panel mounting and quick-connect spade terminals
  • UL Listed

DPST On-Off switching

The Morris 70101 is a double-pole, single-throw toggle switch that switches between On and Off. Its DPST configuration and heavy-duty designation identify the switch type; confirm the ratings and configuration suit the intended application.

Electrical and motor-load ratings

The switch's standard current rating depends on the voltage. Its motor-load rating is specified separately.

  • 20A at 125VAC
  • 10A at 250VAC
  • 10A at 277VAC
  • Motor load: 1-1/2 HP at 125–250VAC

Panel mounting and connections

The 70101 mounts by its threaded bushing in a 1/2-inch panel hole and connects through quick-connect spade terminals.

Intended applications

The 70101 is identified for switching motor, equipment, and lighting loads in industrial and commercial machinery. Select it according to the applicable voltage and load rating.

Before You Order

Confirm the Morris 70101 model number and quantity required before ordering. Check the applicable voltage and load ratings for the intended use.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 70101 Heavy-Duty Toggle Switch, DPST, On-Off, 20A. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number70101
Product TypeHeavy-duty toggle switch
Poles and throwsDouble-pole, single-throw (DPST)
ActionOn-Off
Standard ratings20A at 125VAC; 10A at 250VAC; 10A at 277VAC
Motor-load rating1-1/2 HP at 125–250VAC
TerminalsQuick-connect spade
Mounting TypeThreaded bushing; 1/2-inch panel hole
CertificationsUL Listed
