Morris 70072 Heavy-Duty Toggle Switch Waterproof, SPST, On-Off, 20A
Morris 70072 Heavy-Duty Toggle Switch Waterproof, SPST, On-Off, 20A
Regular price
$14.18
Regular price
Sale price
$14.18
SKU:70072
Quantity
Couldn't load pickup availability

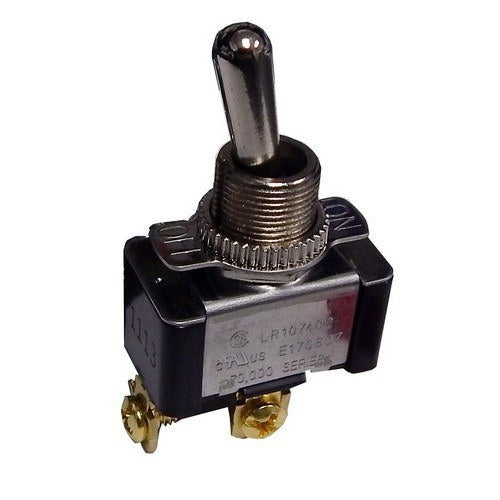

Morris's 70072 is a heavy-duty single-pole single-throw (spst) toggle switch with a On-Off action and screw terminals waterproof. It is rated 20A at 125VAC, 10A at 250VAC, and 10A at 277VAC, with a 3/4 HP 125-250VAC motor load rating, and mounts in a standard threaded bushing.
Key Features
- Solid Brass or Plated Contacts for Reliable Switching
- Threaded Bushing for Panel Mounting
- UL Listed
- Waterproof-Rated Switch
- Screw Terminals
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 70072 |
| Type | Heavy-Duty Toggle Switch |
| Poles/Throw | Single-Pole Single-Throw (SPST) |
| Function | On-Off |
| Standard Rating | 20A 125VAC, 10A 250VAC, 10A 277VAC |
| Motor Load | 3/4 HP 125-250VAC |
| Terminals | Screw |
Applications
Used for heavy-duty sp control of motors, equipment, and lighting loads up to 20A in industrial and commercial machinery.
Installation
Mount the switch in a 1/2" panel hole via the threaded bushing and connect the load to the screw terminals.
