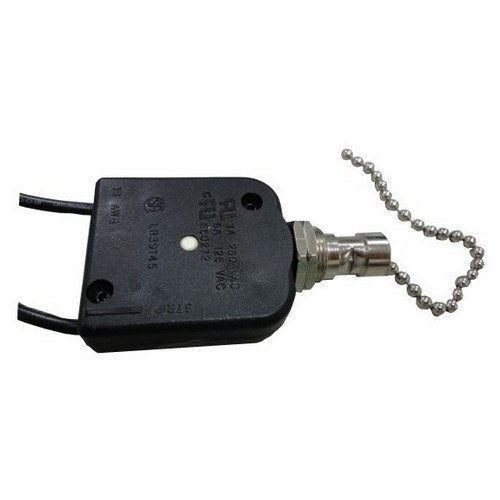

Morris 70023 All-Angle Pull-Chain Switch, SPST On-Off, Nickel

Product Overview

The Morris 70023 is an all-angle pull-chain switch with a single-pole single-throw (SPST) On‑Off action and a nickel finish.

It includes 6" wire leads and is rated 6A at 125VAC and 3A at 250VAC. The mechanism operates regardless of pull direction.

Key Features

• All-angle pull mechanism — operates from any pull direction
• SPST (single-pole single-throw) On‑Off switching
• Nickel finish
• 6" (6-inch) wire leads for wiring into fixtures
• Electrical ratings: 6A at 125VAC, 3A at 250VAC
• UL listed

Function and switching action

This unit is an SPST (single-pole single-throw) On‑Off pull-chain switch. Pulling the chain toggles the circuit between open and closed states.

The all-angle mechanism means the chain will activate the switch regardless of the direction from which it is pulled.

Electrical ratings and wiring

Use this switch within its specified current and voltage ratings to avoid damage or unsafe conditions.

• Rating: 6A at 125VAC
• Rating: 3A at 250VAC
• Two wire leads provided (6" length) — wire the leads in series with the load to control power.

Typical applications

The Morris 70023 is intended for adding simple On‑Off pull-chain control to lighting and small motor fixtures where the listed ratings are appropriate.

• Lampholders and table or floor lamps
• Light fixtures and closet lights
• Fan housings and similar small-load devices

Mounting and installation notes

The switch mounts through a panel hole and is connected by its two leads. Confirm compatibility with the fixture's mounting aperture and wiring method before installation.

• Mount through panel hole (verify hole size on the fixture)
• Wire the two leads in series with the load; follow local electrical codes and safe wiring practices
• Because the mechanism is all-angle, chain orientation is not critical for operation

Before You Order

Confirm the Morris model number and electrical ratings match the requirements of your fixture or application before ordering.

• Verify the fixture’s mounting hole size and that a nickel finish is acceptable for visible installations.
• Ensure the 6A@125VAC / 3A@250VAC ratings cover the load you intend to switch.
• Follow local electrical codes and qualified wiring practices during installation.
