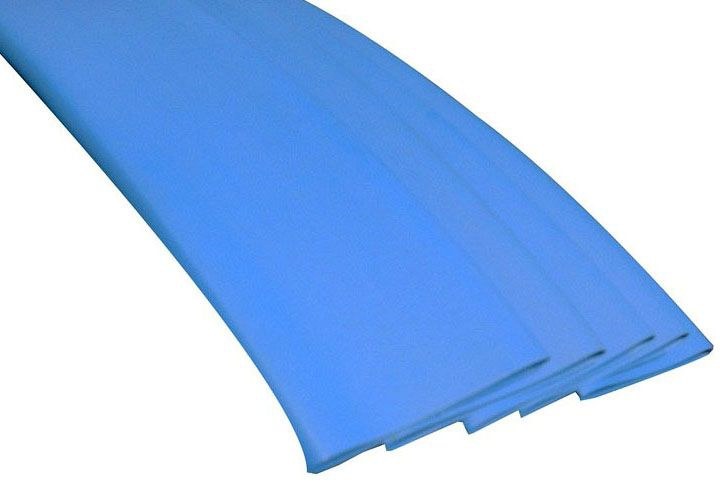

Morris 68426 Thin-Wall Heat Shrink Tubing, 1.26" → 0.590", 4 ft, Blue
Morris 68426 Thin-Wall Heat Shrink Tubing, 1.26" → 0.590", 4 ft, Blue
Regular price
$26.06
Regular price
Sale price
$26.06
SKU:68426
Quantity
Couldn't load pickup availability
Morris's 68426 is blue flexible polyolefin thin-wall heat shrink tubing in a 4-foot length, supplied at 1.26" and recovering to 0.590" at a 2:1 shrink ratio. It is rated 600V with continuous operation to 257°F (125°C) and is UL224 Recognized for insulating, bundling, splicing, and terminations.
Key Features
- Flexible Polyolefin Heat Shrink Tubing
- 2:1 Shrink Ratio
- 600 Volt Rated
- 257°F (125°C) Continuous Operation
- For Insulating, Wire Harness, Bundling, Splicing, and Terminations
- UL224 Recognized
- 4-Foot Stick Length
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68426 |
| Type | Thin Wall Heat Shrink Tubing |
| Expanded Diameter | 1.26" |
| Recovered Diameter | 0.590" |
| Shrink Ratio | 2:1 |
| Length | 4 ft |
| Color | Blue |
| Voltage | 600V |
| Operating Temp | up to 257°F (125°C) |
| Listing | UL224 Recognized |
Applications
Used for insulating, bundling, color-coding, splicing, and strain relief on conductors that fit the recovered diameter.
Installation
Slide the tubing over the joint and apply heat evenly until it recovers tightly to the conductor.
