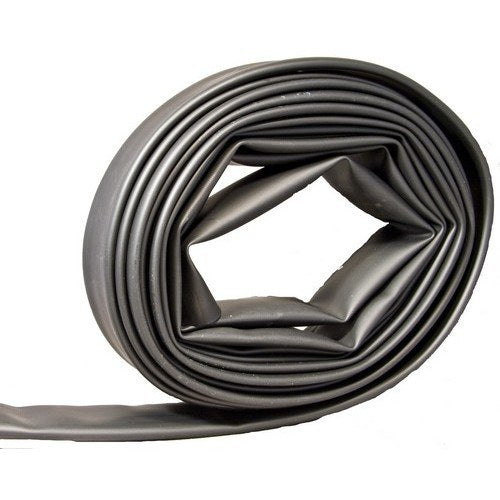

Morris 68146 Medium-Wall Heat Shrink Tubing, 1.10" → 0.40", 25 ft Roll
Description
Product Overview
Morris 68146 is black medium-wall heat shrink tubing supplied as a 25 ft roll. It expands to 1.10" and recovers to 0.40" with a 3:1 shrink ratio.
Specified cable range is #2 AWG through 4/0 AWG. Continuous operating temperature is listed as -67°F to 230°F (-55°C to 110°C).
Key Features
- 3:1 shrink ratio: 1.10" expanded → 0.40" recovered
- 25 ft continuous roll
- Recovered wall thickness: 0.080"
- Voltage rating: 600–1000V
- Continuous operating temperature: -67°F to 230°F (-55°C to 110°C); shrink temperature 248°F (120°C)
- No adhesive liner (non-adhesive)
- Black color; medium-wall construction (lighter and more flexible than heavy-wall is a general distinction)
What this tubing does
Direct answer: Morris 68146 is intended as a protective heat-shrink sleeve for cable splices, joints, and terminations.
It recovers around conductors and splices when heated to provide mechanical protection and insulation where a non-adhesive medium-wall solution is appropriate.
- Specified cable range: #2 AWG through 4/0 AWG
- Medium-wall design provides mechanical protection while allowing flexibility compared with heavier wall options
Suitable applications
Direct answer: Use for protecting and insulating splices, joints, and terminations on cables within the listed cable range.
Applicable where a non-adhesive, medium-wall heat shrink is acceptable for mechanical protection and insulation.
- Cable range: #2 AWG – 4/0 AWG
- Black color for general-purpose electrical applications
Operating and shrink performance
Direct answer: Rated for 600–1000V and continuous operating temperature of -67°F to 230°F (-55°C to 110°C).
Shrink is achieved when the tubing is heated to its specified shrink temperature.
- Voltage rating: 600–1000V
- Continuous operating temperature: -67°F to 230°F (-55°C to 110°C)
- Shrink temperature: 248°F (120°C)
Installation guidance
Direct answer: Slide the tubing over the splice or termination and apply heat evenly from center outward until it recovers.
Because the tubing has no adhesive liner, it does not provide an internal adhesive moisture seal.
- No adhesive liner — does not create an adhesive moisture seal
- Apply heat uniformly to ensure full recovery
Key dimensions and sizing
Direct answer: The tubing expands to 1.10" and recovers to 0.40"; recovered wall thickness is 0.080".
Supplied length is a continuous 25 ft roll in black.
- Expanded diameter: 1.10"
- Recovered diameter: 0.40"
- Wall thickness (recovered): 0.080"
- Length: 25 ft
- Color: Black
Before You Order
Verify the expanded and recovered diameters match the cable and splice dimensions you intend to protect.
- Confirm compatibility with your conductor sizes (#2 AWG–4/0 AWG).
- This SKU has no adhesive liner; select an adhesive-lined product if an internal moisture seal is required.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 68146 Medium-Wall Heat Shrink Tubing, 1.10" → 0.40", 25 ft Roll. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| SKU | 68146; '68146 |
| Product type | Medium Wall Heat Shrink Tubing |
| Cable range | #2 AWG - 4/0 AWG |
| Expanded diameter | 1.10" |
| Recovered diameter | 0.40" |
| Wall thickness (recovered) | 0.080" |
| Shrink ratio | 3:1 |
| Length | 25 ft |
| Adhesive liner | No |
| Voltage rating | 600–1000V |
| Finish | Black |
| Continuous operating temperature | -67°F to 230°F (-55°C to 110°C) |
| Shrink temperature | 248°F (120°C) |
