Morris 68126 Medium-Wall Heat Shrink Tubing, 2.75" → 1.00", 4 ft

(No Ratings)
SKU: 68126
Price: $119.30
Free shipping on orders over $1,500

Description

Product Overview

Morris 68126 is black medium-wall, adhesive-lined heat shrink tubing supplied at 2.75" expanded diameter and recovering to 1.00" (3:1 shrink ratio) in a 4 ft length.

Intended to provide an environmental seal and insulation for cable splices, joints and terminations; rated 600–1000 V with continuous temperature range to 230°F (110°C).

Key Features

  • 3:1 shrink ratio — 2.75" expanded → 1.00" recovered
  • Wall thickness: 0.080" (specified value)
  • 4 ft length with adhesive liner for environmental sealing
  • Continuous operating temperature −67°F to 230°F (−55°C to 110°C); shrink temperature 248°F (120°C)
  • Rated voltage: 600–1000 V
  • Black color; medium-wall construction

What this tubing does

Morris 68126 provides an adhesive-lined covering intended to seal and protect cable splices, joints and terminations. As the tubing recovers, the adhesive liner is specified to flow to form a seal along the length.

  • Seals and protects splices, terminations and joints
  • Adhesive liner for environmental sealing along the 4 ft length
  • Medium-wall construction balances flexibility with mechanical protection

Thermal and electrical ratings

Refer to the listed temperature and voltage ratings to determine suitability: continuous operating temperature is specified to −67°F to 230°F (−55°C to 110°C), shrink activation temperature is specified at 248°F (120°C), and the product is rated 600–1000 V.

  • Continuous operating temperature: −67°F to 230°F (−55°C to 110°C)
  • Shrink temperature: 248°F (120°C)
  • Voltage rating: 600–1000 V

How to install

Slide the tubing over the splice or termination and apply heat evenly from the center outward until the tubing has fully recovered and the adhesive has flowed from the ends.

  • Position tubing so the adhesive liner covers the splice or joint
  • Apply heat evenly until full recovery and adhesive flow are observed
  • Allow to cool before handling

Size and construction

The 68126 is specified with an expanded diameter of 2.75" and a recovered internal diameter of 1.00" (3:1 shrink ratio). Wall thickness is given as 0.080" and the tubing is supplied in a 4 ft length with an adhesive liner. Color is black.

  • Expanded diameter: 2.75"
  • Recovered diameter: 1.00"
  • Wall thickness: 0.080"
  • Length: 4 ft
  • Color: Black
  • Adhesive liner: Yes

Before You Order

Verify the expanded and recovered diameters, adhesive‑lined construction, length and temperature/voltage ratings meet your requirements.

  • Confirm the 2.75" expanded → 1.00" recovered sizing and 4 ft length are appropriate for your splice or termination.
  • Ensure the 600–1000 V rating and −67°F to 230°F operating range match project specifications.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 68126 Medium-Wall Heat Shrink Tubing, 2.75" → 1.00", 4 ft. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU68126; '68126
TypeMedium Wall Heat Shrink Tubing
Expanded Diameter2.75"
Recovered Diameter1.00"
Wall Thickness0.080"
Shrink Ratio3:1
Length4 ft
Adhesive LinerYes
Rated Voltage600–1000 V
Continuous Temperature Rating−67°F to 230°F (−55°C to 110°C)
Shrink Temperature248°F (120°C)
FinishBlack

Comments

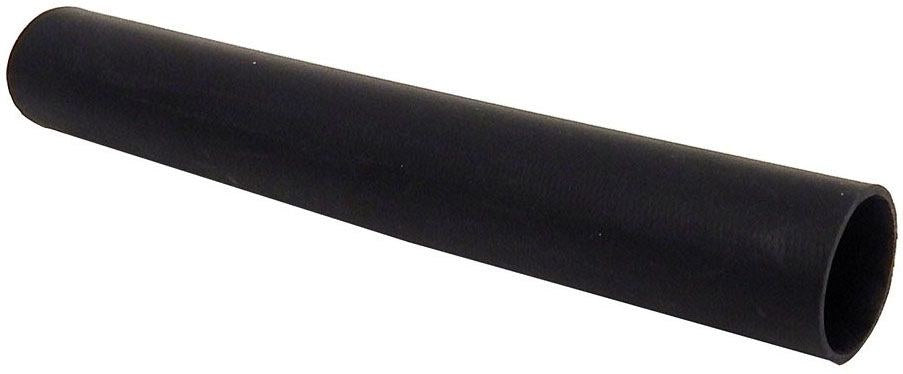

Morris 68126 Medium Wall Heat Shrink Tubing
