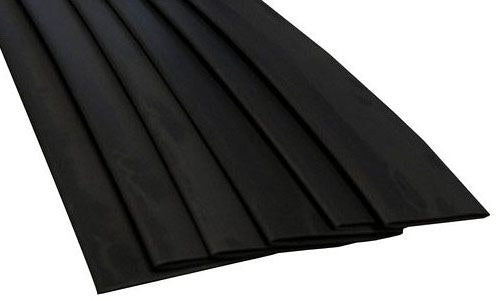

Morris 68088 Thin-Wall Heat Shrink Tubing, 1.26" → 0.590", 4 ft, Black

(No Ratings)
SKU: 68088
Price: $28.49
Free shipping on orders over $1,500

Description

Product Overview

Morris 68088 is a black thin-wall polyolefin heat shrink tubing supplied as a 4-foot stick. It has a 2:1 shrink ratio, recovering from 1.26" expanded diameter to 0.590" recovered diameter.

The tubing is rated for 600 volts, continuous operation to 257°F (125°C), and is UL224 Recognized for insulating, bundling, splicing, and terminations.

Key Features

  • Flexible polyolefin construction
  • 2:1 shrink ratio — 1.26" expanded → 0.590" recovered
  • 4-foot stick length
  • 600 V voltage rating
  • Continuous operating temperature to 257°F (125°C)
  • UL224 Recognized for electrical insulation and terminations
  • Black color for general-purpose use and color-coding

What this tubing is used for

Morris 68088 thin-wall heat shrink tubing is intended for insulating, bundling, color-coding, splicing, and providing strain relief on conductors and assemblies that fit the recovered diameter.

  • Insulating wire joints and terminations
  • Bundling wire harnesses
  • Splice protection
  • Strain relief and abrasion protection where thin-wall construction is acceptable

Electrical and thermal performance

This tubing is rated to 600 volts and for continuous operation to 257°F (125°C), suitable for many general-purpose electrical and electronic applications within those limits.

  • Voltage rating: 600 V
  • Operating temperature: up to 257°F (125°C)

Expanded and recovered dimensions

The product is supplied at an expanded (before shrink) diameter of 1.26 inches and recovers to a nominal 0.590 inches at a 2:1 shrink ratio. Use these dimensions to confirm fit over terminals, connectors, or bundled conductors before recovery.

  • Expanded diameter: 1.26"
  • Recovered diameter: 0.590"
  • Shrink ratio: 2:1

Installation basics

Slide the appropriate length of tubing over the joint or area to be protected and apply heat evenly until the tubing has recovered tightly to the underlying surface. Ensure full recovery around irregular shapes for proper insulation and mechanical support.

  • Apply heat evenly; avoid overheating adjacent components
  • Confirm full recovery (tight fit) before finishing the assembly
  • Trim tubing to length before heating when possible

Listings and approvals

Morris 68088 is UL224 Recognized for heat shrink tubing, which supports its use for insulating and electrical terminations where UL224 recognition is required.

  • Listing: UL224 Recognized

Before You Order

Confirm the model number and the recovered diameter are suitable for your conductor size and application before ordering.

  • Verify that 0.590" recovered diameter will provide the desired fit and insulation.
  • Measure connectors, terminals, or bundled harness diameter in the recovered state to ensure compatibility.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 68088 Thin-Wall Heat Shrink Tubing, 1.26" → 0.590", 4 ft, Black. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU68088
Product TypeThin Wall Heat Shrink Tubing
Expanded Diameter1.26"
Recovered Diameter0.590"
Shrink Ratio2:1
Length4 ft
FinishBlack
Rated Voltage600 V
Operating Temperatureup to 257°F (125°C)
CertificationsUL224 Recognized
MaterialPolyolefin
