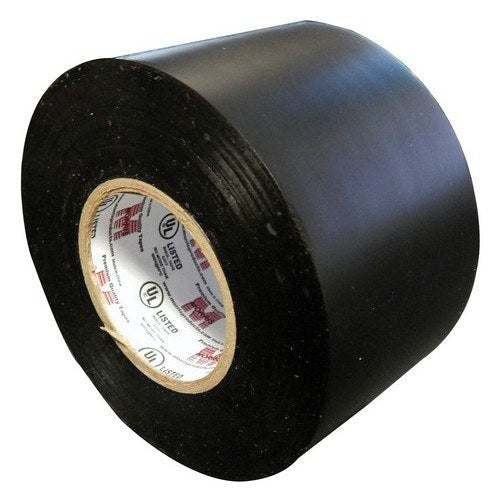

Morris 60206 8.5 Mil Professional Heavy-Duty Electrical Tape, Black, 2" x 66 ft
Description
Product Overview
Morris 60206 is an 8.5 mil all‑weather professional‑grade black vinyl electrical tape sized 2" x 66 ft.
Listed to UL 510 and CSA 22.2 and meeting MIL‑I‑24391C; specified for primary insulation to 600V and as a protective outer jacket to 69KV.
Key Features
- 8.5 mil vinyl thickness for heavy‑duty splicing and jacketing
- Roll size: 2" wide x 66 ft
- Primary insulation rating: 600V; protective outer jacket rating: 69KV
- Listings: UL 510, CSA 22.2; MIL‑I‑24391C
- All‑weather formulation
Uses and common applications
Morris 60206 is used where a durable, weather‑resistant vinyl electrical tape is required for splice insulation and jacketing.
- Primary insulation on conductors and splices up to 600V
- Outer protective jacket over splices and terminations up to 69KV
- Applications that require a heavy‑duty vinyl jacket in outdoor or harsh environments
Voltage ratings and approvals
The product is listed to UL 510 and CSA 22.2 and identified with Mil‑Spec MIL‑I‑24391C; the catalog specifies 600V for primary insulation and 69KV for protective jacketing.
- Primary insulation rating: 600V
- Protective jacket rating: 69KV
- Listings: UL 510, CSA 22.2; MIL‑I‑24391C
Application notes
Apply with a half‑lap technique, stretching slightly during wrapping to form a conforming jacket and finish without tension.
- Use as primary insulation or as an outer jacket over insulating layers or splice compound
- Wrap with a half‑lap for uniform coverage
- Stretch slightly while applying; do not leave tension on the finished wrap
Quick specs
Reference the roll dimensions, thickness and listings when verifying suitability.
- Size: 2" x 66 ft
- Thickness: 8.5 mil
- Color: Black
- Listings: UL 510, CSA 22.2, MIL‑I‑24391C
Before You Order
This listing describes a single SKU: Morris 60206, 2" x 66 ft black vinyl electrical tape.
- Confirm the model number and quantity needed before ordering
- Verify that the 600V primary / 69KV protective jacket ratings meet your project requirements
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 60206 8.5 Mil Professional Heavy-Duty Electrical Tape, Black, 2" x 66 ft. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| SKU | 60206; '60206 |
| Type | Vinyl Electrical Tape |
| Finish | Black |
| Size | 2" x 66 ft |
| Thickness | 8.5 mil |
| Rated Voltage | 600V primary / 69KV protective jacket |
| Certifications | UL 510, CSA 22.2, MIL‑I‑24391C |
| Comparable to | 3M Super 88 |
