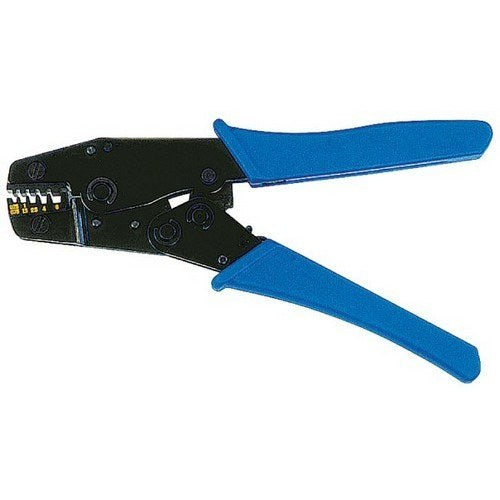

Morris 54480 Cord-End Ferrule Crimping Tool, 22-10 AWG

Product Overview

The Morris 54480 is a cord-end ferrule crimping tool sized for 22–10 AWG conductors. It crimps both insulated and non‑insulated wire-end ferrules and features a controlled‑cycle ratchet to ensure a complete crimp.

The tool is 10" long and uses ergonomic cushion‑grip handles for hand comfort during repeated use.

Key Features

• Crimps insulated and non‑insulated wire‑end ferrules
• Wire range: 22–10 AWG
• Controlled‑cycle ratchet to ensure a full crimp
• Ergonomic cushion‑grip handles; 10" overall length

What this tool does

The Morris 54480 is designed specifically to crimp cord‑end (wire‑end) ferrules. It accepts ferrules for both insulated and non‑insulated terminals and applies a controlled‑cycle crimp to form a secure termination on stranded conductors.

Wire range and common applications

Use this tool for conductors within the 22–10 AWG range. It is intended for creating ferrule terminations on stranded wire where a consistent, compact crimp is required for insertion into terminal blocks, connectors, or equipment wiring points.

• Wire range: 22–10 AWG
• Suitable for both insulated and non‑insulated ferrules

Operation and basic use

The 54480 uses a controlled‑cycle ratchet mechanism that holds the tool closed until the full crimp cycle is completed, helping ensure consistent crimps. Basic use involves stripping the conductor, inserting the ferrule with the conductor into the matching nest, and squeezing the handles until the ratchet releases.

• Controlled‑cycle ratchet ensures completion of the crimp before release
• Strip conductor, place ferrule and conductor in the proper die, squeeze until ratchet releases

Physical details and handling

The tool measures 10" in overall length and is fitted with ergonomic cushion‑grip handles for improved comfort during repeated operations.

• Overall length: 10"
• Cushion‑grip handles for ergonomic handling

Before You Order

Confirm that you need a cord‑end ferrule crimping tool for 22–10 AWG conductors and that ferrule sizes you plan to use match this tool's nests. Verify the model number and quantity required before ordering.

• This SKU crimps 22–10 AWG ferrules only; do not assume compatibility with other ferrule ranges.
• If you require manufacturer documentation, specifications, or a parts list, obtain them from Morris or an authorized distributor prior to purchase.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 54480 Cord-End Ferrule Crimping Tool, 22-10 AWG. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
