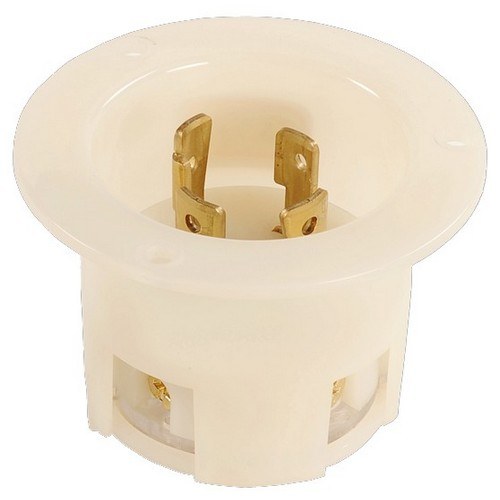

Morris 20472 L16-30P Recessed Locking Plug, 30A 480V

(No Ratings)
SKU: 20472
Price: $24.48
Free shipping on orders over $1,500

Description

Morris's 20472 is a 30A, 480V NEMA L16-30P recessed (flanged inlet) locking plug (male, 3-pole 4-wire) designed for flush panel or enclosure mounting. It has rugged nylon/polycarbonate construction, solid one-piece brass contacts set in deep pockets, heavy-duty combo-head terminal screws, and a clear terminal chamber for inspection.

Key Features

  • Rugged Nylon/Polycarbonate Construction Resists Impact, Abrasion, Sunlight, and Chemicals
  • Grooved Housing for Enhanced Grip
  • All Contacts Solid One-Piece Brass for Superior Conductivity and Reduced Heat Rise
  • Heavy-Duty Power Contacts Set in Deep Pockets
  • Heavy-Duty Brass Combo-Head Terminal Screws
  • Clear Terminal Chamber for Visual Inspection of Terminals
  • Flanged for Flush Panel or Enclosure Mounting
  • Includes Grounding Screw

Specifications

Brand Morris
Catalog No. 20472
Type Recessed Locking Plug
NEMA Configuration L16-30P
Amperage 30A
Voltage 480V
Poles/Wires 3-Pole 4-Wire
Configuration Male, Flush/Recessed
Material Nylon/Polycarbonate, Brass Contacts

Applications

Used to add a 30A 480V NEMA L16-30P locking power point flush to equipment panels, gensets, and enclosures.

Installation

Cut the panel opening, mount the flange with the provided hardware, and land the conductors on the brass terminals.
