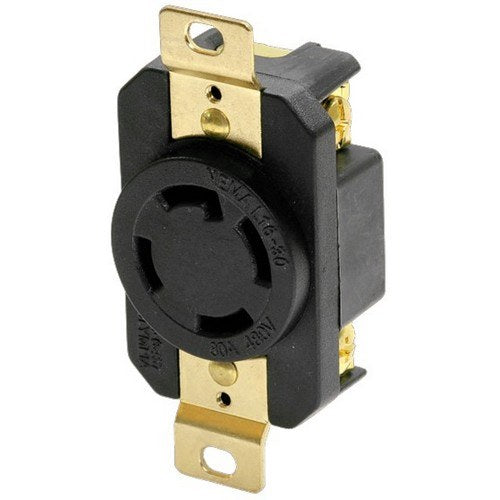

Morris 20471 L16-30R Locking Receptacle, 30A 480V

Morris's 20471 is a 30A, 480V NEMA L16-30R locking receptacle (3-pole 4-wire) with rugged nylon/polycarbonate construction that resists impact, abrasion, sunlight, and chemicals. All contacts are solid one-piece brass set in deep pockets for superior conductivity and reduced heat rise, with heavy-duty brass combo-head terminal screws and a clear terminal chamber.

Key Features

• Rugged Nylon/Polycarbonate Construction Resists Impact, Abrasion, Sunlight, and Chemicals
• Grooved Housing for Enhanced Grip
• All Contacts Solid One-Piece Brass for Superior Conductivity and Reduced Heat Rise
• Heavy-Duty Power Contacts Set in Deep Pockets
• Heavy-Duty Brass Combo-Head Terminal Screws
• Clear Terminal Chamber for Visual Inspection of Terminals
• Includes Grounding Screw

Specifications

Applications

Used as a panel- or box-mounted 30A 480V NEMA L16-30R locking outlet for generators, equipment, and industrial power.

Installation

Mount the receptacle in a box or panel and land line, neutral, and ground on the brass terminal screws.
