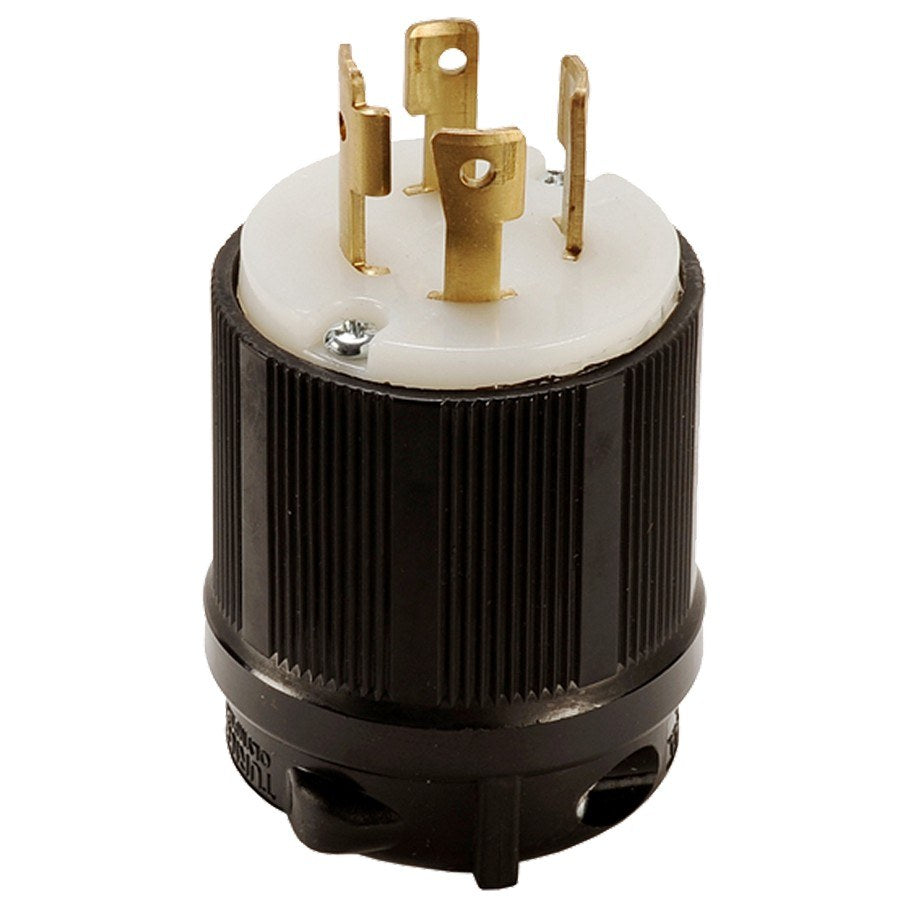

Morris 20469 L16-30P Locking Plug, 30A 480V

(No Ratings)
SKU: 20469
Price: $23.45
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20469 is a NEMA L16-30P (male) locking plug rated for 30A at 480V for 3-pole, 4-wire applications. It is designed for rugged commercial and industrial cord and equipment connections.

Construction combines a durable nylon/polycarbonate housing with solid one-piece brass contacts set in deep pockets, heavy-duty terminal screws, a clear terminal chamber for inspection, and integrated cord strain relief with rubber grommet.

Key Features

  • NEMA configuration: L16-30P (male), 3-pole 4-wire
  • Electrical rating: 30A, 480V
  • Rugged nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets for conductivity and reduced heat rise
  • Heavy-duty brass combo-head terminal screws and included grounding screw
  • Clear terminal chamber for visual inspection
  • Cord strain relief with rubber grommet to seal and protect conductors
  • Grooved housing for enhanced grip during connection/disconnection

What this plug is for

Direct answer: The Morris 20469 L16-30P is intended for 30A, 480V NEMA L16-30 locking power connections where a 3-pole, 4-wire male plug is required.

Use cases: It is suitable for commercial and industrial cord sets and equipment requiring a twist-lock mating with an L16-30R receptacle.

  • NEMA configuration: L16-30P (male)
  • Rated amperage/voltage: 30A, 480V
  • Poles/wires: 3-pole, 4-wire

Construction and materials

Direct answer: The plug combines a rugged thermoplastic housing with solid brass contact components to provide mechanical durability and reliable conductivity.

Details: The housing is molded from nylon/polycarbonate to resist impact, abrasion, sunlight, and many chemicals. Contacts are solid one-piece brass and are set in deep pockets to help reduce heat rise. Terminal screws are heavy-duty brass and a grounding screw is included.

  • Housing material: Nylon/Polycarbonate
  • Contacts: Solid one-piece brass set in deep pockets
  • Terminal screws: Heavy-duty brass combo-head
  • Inspection feature: Clear terminal chamber
  • Environmental protection: Cord strain relief and rubber grommet to seal cable entry

Installation basics

Direct answer: Terminate the cord conductors to the brass terminal screws, verify connections via the clear terminal chamber, and assemble the housing with the provided strain relief and grommet.

Notes: Strip the cable conductors to the appropriate lengths, attach line, neutral, and ground to their respective terminals, tighten the heavy-duty screws, seat the rubber grommet and cord strain relief, and close the housing. The grooved housing aids grip during assembly and use.

  • Includes ground screw; use appropriate torque for terminal screws per installer practice
  • Clear terminal chamber allows visual verification of conductor seating before final assembly

Technical specifications

Direct answer: Key electrical and configuration specifications are provided below for quick selection and cross-reference.

  • NEMA configuration: L16-30P
  • Amperage: 30A
  • Voltage: 480V
  • Poles/Wires: 3-pole, 4-wire
  • Configuration: Male (plug)
  • Brand: Morris
  • Catalog number: 20469

Before You Order

Confirm the exact NEMA configuration (L16-30P), voltage, and amperage required for your equipment before ordering. Ensure the cord and conductor sizes you plan to use are compatible with 30A terminations and follow local electrical codes and installer best practices.

  • Verify mating receptacle is NEMA L16-30R
  • Confirm conductor gauge and insulation type suitable for 30A/480V terminations
  • If uncertain, consult a qualified electrician to verify compatibility and installation requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20469 L16-30P Locking Plug, 30A 480V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20469; '20469
NEMA ConfigurationL16-30P
Ampere Rating30A
Voltage480V
Poles / Wires3-Pole, 4-Wire
ConfigurationMale (plug)
MaterialNylon/Polycarbonate housing; solid brass contacts
