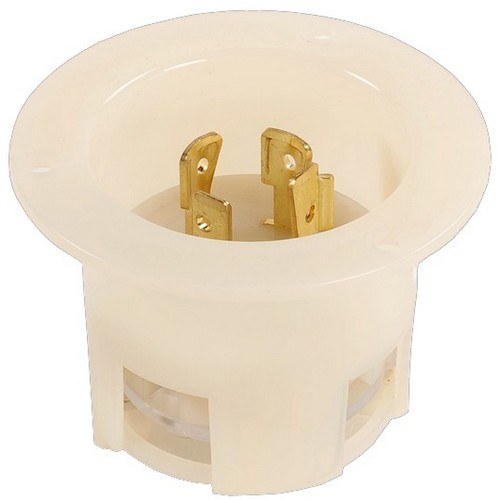

Morris 20467 L16-20P Recessed Locking Plug, 20A 480V

(No Ratings)
SKU: 20467
Price: $17.35
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20467 is a flanged, recessed NEMA L16-20P locking plug — a male 3-pole 4-wire device rated 20A at 480V for flush panel or enclosure mounting.

It features a nylon/polycarbonate housing, solid one-piece brass contacts, heavy-duty terminal screws, and a clear terminal chamber for visual inspection.

Key Features

  • NEMA configuration: L16-20P (male, recessed/flanged)
  • Electrical rating: 20A, 480V; 3-pole, 4-wire
  • Housing: nylon/polycarbonate
  • Contacts: solid one-piece brass set in deep pockets
  • Terminals: heavy-duty brass combo-head screws and clear terminal chamber for inspection
  • Includes grounding screw; flange for flush panel or enclosure mounting

Function and intended use

The Morris 20467 provides a recessed, flanged locking power inlet in the NEMA L16-20P configuration. It supplies a 3-pole, 4-wire connection rated 20A at 480V and is intended to be mounted flush in equipment panels or enclosures where a NEMA L16-20 inlet is required.

Typical applications

This recessed locking plug is used to add a NEMA L16-20P inlet to equipment panels, generator sets, and electrical enclosures that require a locking (twist-lock) connection at the specified rating.

  • Panel-mounted power inlet for equipment
  • Generator set or enclosure inlet

Mounting and installation overview

The 20467 is flanged for flush panel or enclosure mounting. The panel opening is cut to the matching dimension, the flange is secured with hardware, and conductors are terminated to the brass terminals. A grounding screw is included.

  • Flanged recessed design for flush mounting
  • Clear terminal chamber for visual inspection of terminations

Materials and construction details

The unit combines a nylon/polycarbonate housing with solid one-piece brass contacts. Contacts are provided in deep pockets and terminated with heavy-duty brass combo-head screws.

  • Housing: nylon/polycarbonate
  • Contacts: solid one-piece brass in deep pockets
  • Terminals: heavy-duty brass combo-head screws

Electrical and mechanical specifications

Key specifications identify the device and confirm compatibility with NEMA L16-20 systems.

  • NEMA configuration: L16-20P (male, recessed/flanged)
  • Amperage: 20A
  • Voltage: 480V
  • Poles/Wires: 3-pole, 4-wire
  • Model/Catalog: Morris 20467

Before You Order

Confirm the model number (Morris 20467) and the NEMA configuration (L16-20P) match your equipment requirements.

  • Verify that a 20A, 480V, 3-pole 4-wire inlet is the correct rating for your application.
  • Confirm panel cutout and flange mounting dimensions with your panel or enclosure prior to purchase.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20467 L16-20P Recessed Locking Plug, 20A 480V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20467
NEMA ConfigurationL16-20P
Device TypeRecessed Locking Plug (Male, Flanged)
Ampere Rating20A
Voltage480V
Poles / Wires3-Pole, 4-Wire
Housing MaterialNylon / Polycarbonate
ContactsSolid one-piece brass
