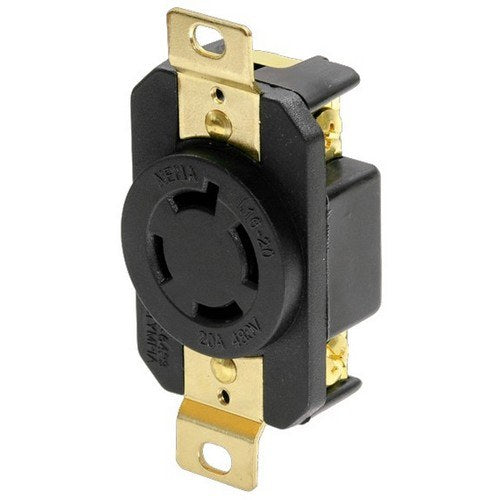

Morris 20466 L16-20R Locking Receptacle, 20A 480V
Description
Product Overview
The Morris 20466 is a 20A, 480V NEMA L16-20R locking receptacle with a 3-pole, 4-wire configuration. It is a female receptacle intended for use as a panel- or box-mounted locking outlet.
The receptacle has a nylon and polycarbonate housing and solid one-piece brass contacts. Its grooved housing provides an enhanced grip, and a clear terminal chamber allows visual inspection of the terminals.
Key Features
- NEMA L16-20R configuration, rated 20A and 480V
- 3-pole, 4-wire female locking receptacle
- Nylon and polycarbonate construction designed to resist impact, abrasion, sunlight, and chemicals
- One-piece brass contacts set in deep pockets
- Heavy-duty brass combo-head terminal screws and included grounding screw
- Grooved housing and clear terminal chamber
Electrical configuration and rating
The Morris 20466 is a NEMA L16-20R locking receptacle rated 20A and 480V. Its configuration is 3-pole, 4-wire, with a female receptacle connection.
Housing, contacts, and terminal details
The housing is made from nylon and polycarbonate and is described as resistant to impact, abrasion, sunlight, and chemicals. The grooved exterior is designed for enhanced grip.
Solid one-piece brass contacts sit in deep pockets. The receptacle also has heavy-duty brass combo-head terminal screws, a clear terminal chamber for visual inspection, and an included grounding screw.
Intended use and mounting
This receptacle is described for panel- or box-mounted use as a 20A, 480V locking outlet for generators, equipment, and industrial power.
Before You Order
Confirm that the NEMA L16-20R configuration and 20A, 480V rating match the intended application.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 20466 L16-20R Locking Receptacle, 20A 480V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 20466 |
| Product Type | Locking receptacle |
| NEMA Configuration | L16-20R |
| Ampere Rating | 20A |
| Voltage | 480V |
| Poles and wires | 3-pole, 4-wire |
| Configuration | Female receptacle |
| Housing Material | Nylon and polycarbonate |
| Contact Material | Brass |
