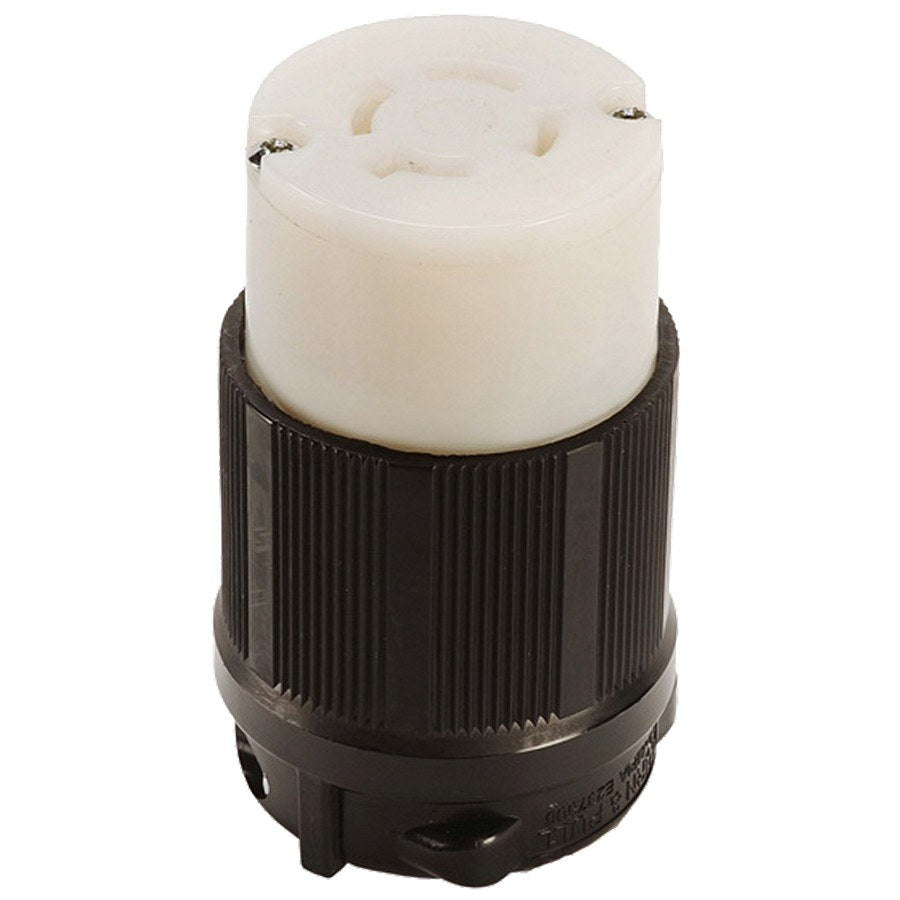

Morris 20465 L16-20C Locking Connector, 20A 480V

Product Overview

The Morris 20465 is a female NEMA L16-20C locking connector rated for 20A and 480V. Its 3-pole, 4-wire configuration is intended for matching locking power connections.

Designed for cord and equipment connections in commercial and industrial settings, the connector has a grooved housing, solid one-piece brass contacts, and terminal screws for conductor connections.

Key Features

• Female NEMA L16-20C configuration, 20A, 480V, 3-pole, 4-wire
• Nylon/polycarbonate housing described as resistant to impact, abrasion, sunlight, and chemicals
• Solid one-piece brass contacts set in deep pockets
• Grooved housing, brass combo-head terminal screws, clear terminal chamber, cord strain relief, rubber grommet, and grounding screw

L16-20C Connector Configuration

The Morris 20465 is a female NEMA L16-20C locking connector rated 20A at 480V. It has a 3-pole, 4-wire configuration for matching L16-20C locking power connections.

Housing and Brass Contact Construction

The connector uses a nylon/polycarbonate housing and solid one-piece brass contacts set in deep pockets. The housing is described as resistant to impact, abrasion, sunlight, and chemicals.

• Grooved housing for grip
• Brass contacts described as supporting conductivity and reduced heat rise
• Heavy-duty brass combo-head terminal screws

Terminal Access and Cord Features

A clear terminal chamber allows visual inspection of the terminals. The connector also includes cord strain relief, a rubber grommet, and a grounding screw.

Before You Order

Confirm that the L16-20C configuration, 20A rating, 480V rating, and female connector type match the intended connection.
