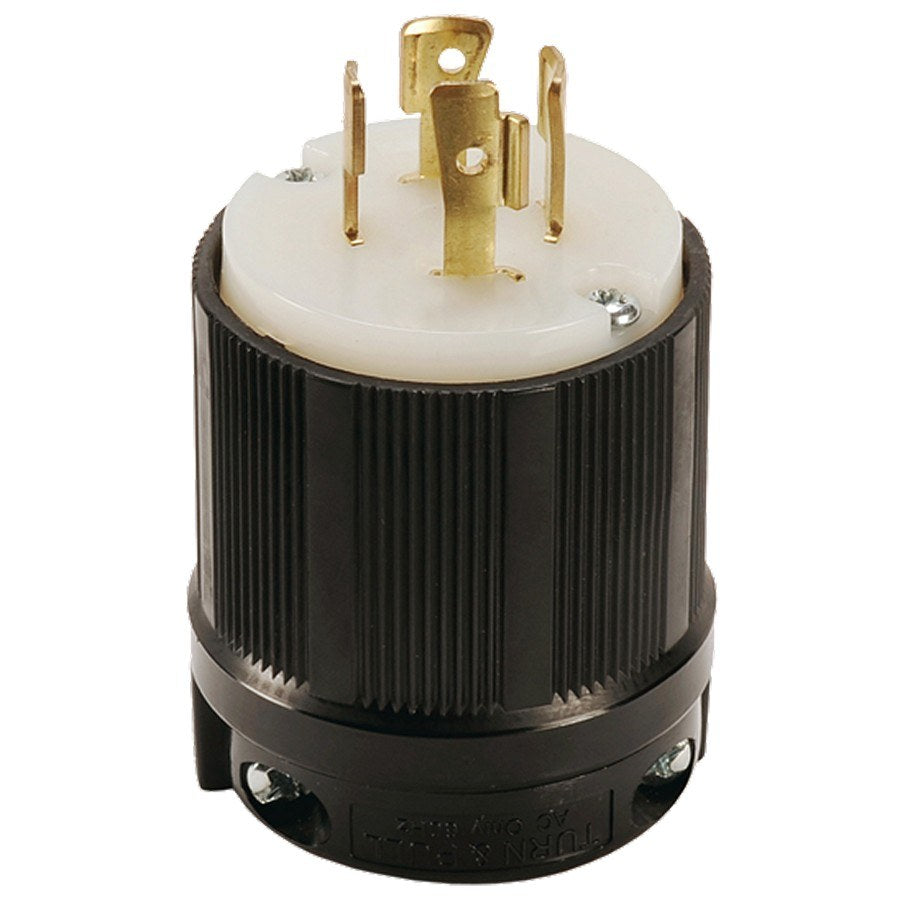

Morris 20464 L16-20P Locking Plug, 20A 480V

(No Ratings)
SKU: 20464
Price: $18.02
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20464 is a 20A, 480V NEMA L16-20P locking plug. It has a male 3-pole, 4-wire configuration for compatible cord and equipment power connections.

Its nylon/polycarbonate housing has a grooved surface for grip, while solid one-piece brass contacts and heavy-duty brass terminal screws form the connection points.

Key Features

  • NEMA L16-20P configuration, rated 20A and 480V
  • Male, 3-pole, 4-wire locking plug
  • Nylon/polycarbonate housing described as resistant to impact, abrasion, sunlight and chemicals
  • Solid one-piece brass contacts set in deep pockets
  • Grooved housing, cord strain relief and rubber grommet
  • Clear terminal chamber for visual inspection and included grounding screw

L16-20P Configuration and Use

The Morris 20464 is a male NEMA L16-20P locking plug rated 20A and 480V, with a 3-pole, 4-wire configuration. It is intended for compatible locking power connections on cords and equipment in commercial and industrial settings.

Housing and Brass Contact Construction

The housing is made of nylon/polycarbonate and has grooves for enhanced grip. The product description states that the housing resists impact, abrasion, sunlight and chemicals; these claims do not specify an environmental rating.

Solid one-piece brass contacts are set in deep pockets. The design is described as supporting conductivity and reduced heat rise.

Terminals and Cord Features

The plug has heavy-duty brass combination-head terminal screws and a clear terminal chamber for visual inspection. It also includes a grounding screw, cord strain relief and a rubber grommet described as helping seal the assembly from the environment.

Before You Order

Confirm that the NEMA L16-20P configuration, 20A rating and 480V rating match the intended connection.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20464 L16-20P Locking Plug, 20A 480V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number20464
Product TypeLocking plug
NEMA ConfigurationL16-20P
Ampere Rating20A
Voltage480V
Poles and wires3-pole, 4-wire
ConfigurationMale
Housing MaterialNylon/polycarbonate
Contact MaterialBrass
