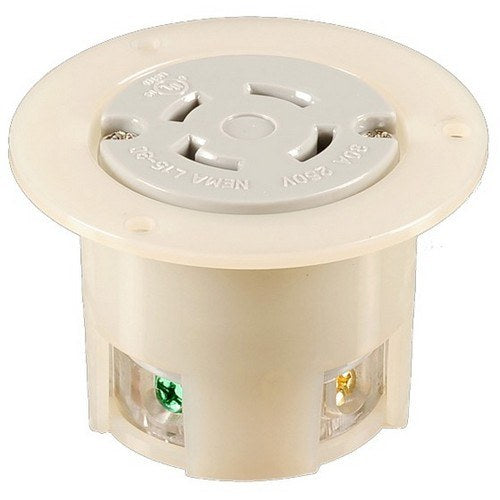

Morris 20463 L15-30R Recessed Locking Receptacle, 30A 250V

(No Ratings)
SKU: 20463
Price: $15.01
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20463 is a female NEMA L15-30R recessed locking receptacle rated 30A and 250V. Its 3-pole, 4-wire configuration is designed for a locking power connection.

The flanged receptacle is intended for flush mounting in equipment panels or enclosures, including applications such as gensets. Its housing is made of nylon and polycarbonate, with solid one-piece brass contacts.

Key Features

  • NEMA L15-30R configuration; 30A, 250V; 3-pole, 4-wire
  • Recessed, flanged design for flush panel or enclosure mounting
  • Nylon/polycarbonate housing described as resistant to impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets
  • Heavy-duty brass combo-head terminal screws and a clear terminal chamber for visual inspection
  • Includes a grounding screw

NEMA L15-30R Configuration and Ratings

The Morris 20463 is a 30A, 250V female receptacle with a NEMA L15-30R configuration. It has a 3-pole, 4-wire design for a locking connection.

Recessed Panel and Enclosure Mounting

This receptacle has a flange for flush or recessed mounting in a panel or enclosure. Listed applications include equipment panels, gensets, and enclosures where a 30A, 250V NEMA L15-30R power point is needed.

Housing, Contacts, and Terminal Details

The housing combines nylon and polycarbonate and has a grooved surface for grip. The manufacturer’s product description identifies resistance to impact, abrasion, sunlight, and chemicals.

Solid one-piece brass contacts are set in deep pockets. Heavy-duty brass combo-head terminal screws provide conductor connection points, while a clear terminal chamber allows visual inspection of the terminals. A grounding screw is included.

Before You Order

Confirm that the L15-30R configuration, 30A rating, 250V rating, and recessed mounting style match the intended connection and panel or enclosure.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20463 L15-30R Recessed Locking Receptacle, 30A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number20463
Receptacle typeRecessed locking receptacle
NEMA ConfigurationL15-30R
Ampere Rating30A
Voltage250V
Poles and wires3-pole, 4-wire
ConfigurationFemale, flush/recessed
Mounting TypeFlanged for flush panel or enclosure mounting
Housing MaterialNylon/polycarbonate
Contact MaterialBrass
