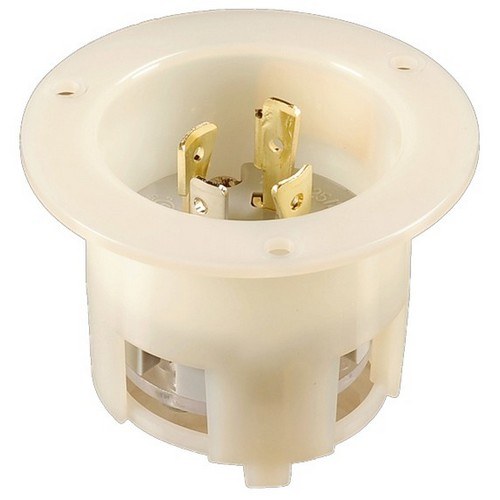

Morris 20456 L14-20P Recessed Locking Plug, 20A 125-250V

(No Ratings)
SKU: 20456
Price: $12.46
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20456 is a recessed (flanged) NEMA L14-20P locking plug (male) rated 20A at 125/250V for flush panel or enclosure mounting.

It features a nylon/polycarbonate housing, solid one-piece brass contacts set in deep pockets, heavy-duty terminal screws, and a clear terminal chamber for visual inspection.

Key Features

  • NEMA L14-20P configuration — 3-pole, 4-wire, male recessed (flanged) inlet
  • Rated 20A, 125–250V
  • Nylon/polycarbonate housing
  • Solid one-piece brass contacts set in deep pockets
  • Clear terminal chamber for visual inspection of wiring
  • Heavy-duty brass combo-head terminal screws and included grounding screw
  • Flanged design for flush mounting to panels or enclosures

What this part does

The Morris 20456 provides a recessed, locking male inlet using the NEMA L14-20P configuration to establish a 20A, 125/250V connection when mated with compatible L14-20R receptacles.

Typical applications

Add a flush L14-20P power inlet to equipment panels, generators, enclosures, and similar housings that require a 20A 125/250V locking connection.

  • Equipment panels and control enclosures
  • Genset inlet panels
  • Power distribution access points

Mounting and wiring overview

Designed for recessed/flanged mounting to a flush panel or enclosure. Install by cutting the appropriate panel opening, securing the flange with mounting hardware, and terminating conductors to the brass terminals. A grounding screw is included for equipment grounding.

  • Mount flange to panel or enclosure using appropriate hardware
  • Terminate conductors to the heavy-duty brass combo-head terminal screws
  • Follow applicable wiring practices and local electrical code when selecting conductor sizes and making terminations

Materials and durability

The housing is molded from a nylon/polycarbonate blend. Power contacts are solid one-piece brass set in deep pockets. A clear terminal chamber allows visual inspection of terminations.

  • Nylon/polycarbonate housing
  • Solid one-piece brass contacts
  • Clear terminal chamber

Technical specifications

Key rated electrical and configuration details for quick reference.

Before You Order

Confirm the model number and quantity required before ordering.

  • Verify that a recessed (flanged) L14-20P male inlet is the correct configuration for your panel or enclosure.
  • Ensure conductor sizes and local electrical code requirements are followed during installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20456 L14-20P Recessed Locking Plug, 20A 125-250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20456; '20456
Model / NEMA ConfigurationL14-20P (Recessed / Flanged)
Ampere Rating20A
Voltage125–250V
Poles / Wires3-Pole 4-Wire
Gender / MountingMale, Flush/Recessed (Flanged inlet)
Housing MaterialNylon/Polycarbonate
ContactsSolid one-piece brass
Terminal FeaturesHeavy-duty brass combo-head screws; clear terminal chamber; includes grounding screw
