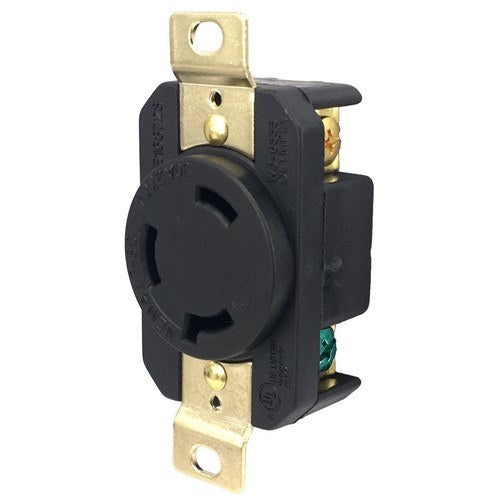

Morris 20452 L7-30R Locking Receptacle, 30A 277V

(No Ratings)
SKU: 20452
Price: $13.57
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20452 is a NEMA L7-30R locking receptacle rated 30A at 277V. It provides a secure twist-lock connection for generators and industrial equipment where a 2-pole, 3-wire 30A/277V outlet is required.

Constructed with a rugged nylon/polycarbonate housing and solid one-piece brass contacts set in deep pockets, the 20452 is designed for reliable conductivity, reduced heat rise, and visual terminal inspection.

Key Features

  • NEMA configuration: L7-30R (locking receptacle, female)
  • Electrical rating: 30A, 277V, 2-pole 3-wire
  • Housing: rugged nylon/polycarbonate resistant to impact, abrasion, sunlight, and chemicals
  • Contacts: solid one-piece brass power contacts set in deep pockets
  • Terminals: heavy-duty brass combo-head terminal screws; clear terminal chamber for visual inspection; includes grounding screw
  • Grooved housing for improved grip during connection

What this receptacle does

The Morris 20452 provides a NEMA L7-30R (locking) female outlet rated for 30 amps at 277 volts. It creates a secure twist-lock connection designed to prevent accidental disconnection of power to generators, industrial equipment, or other 30A/277V loads that use the L7-30 configuration.

  • NEMA L7-30R configuration — 2-pole, 3-wire locking receptacle
  • Intended as a panel- or box-mounted outlet

Typical applications

Use the 20452 where a 30A, 277V locking outlet is required. Common applications include generator output panels, industrial equipment power in commercial and light-industrial settings, and other installations that require a secure, twist-lock connection.

  • Generator receptacles and distribution panels
  • Equipment power connections in industrial or commercial installations

Installation and wiring

Mount the receptacle in a suitable electrical box or panel cutout and terminate the conductors on the provided brass terminal screws. The design includes a clear terminal chamber for visual inspection and a grounding screw for equipment grounding.

  • Land line, neutral, and ground on the heavy-duty brass combo-head terminal screws
  • Designed for panel- or box-mount installation

Materials and durability

The 20452 combines a rugged nylon/polycarbonate housing with solid one-piece brass contacts. The housing resists impact, abrasion, sunlight, and many chemicals, while the heavy-duty brass contacts are set in deep pockets to improve conductivity and reduce heat rise.

  • Housing: nylon/polycarbonate for mechanical and environmental resistance
  • Contacts: solid one-piece brass for conductivity; deep-pocket contact design
  • Includes grooved housing for better grip during coupling

Key specifications

The following specifications summarize the product’s technical identity for selection and comparison.

  • Brand: Morris
  • Catalog number: 20452
  • NEMA configuration: L7-30R
  • Amperage: 30A
  • Voltage: 277V
  • Poles/Wires: 2-pole, 3-wire
  • Type: Locking receptacle (female)
  • Materials: nylon/polycarbonate housing; brass contacts

Before You Order

Confirm the model number and electrical requirements for your installation before ordering. This listing describes one specific locking receptacle SKU (Morris 20452).

  • Verify that a NEMA L7-30R (30A, 277V, 2-pole 3-wire) receptacle is the correct configuration for your equipment or panel.
  • Ensure your mounting box/panel cutout and wiring meet local electrical code and project requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20452 L7-30R Locking Receptacle, 30A 277V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20452; '20452
NEMA ConfigurationL7-30R
Ampere Rating30A
Voltage277V
Poles / Wires2-Pole, 3-Wire
TypeLocking Receptacle (Female)
Housing MaterialNylon/Polycarbonate
Contact MaterialSolid one-piece brass
Included ItemsGrounding screw
