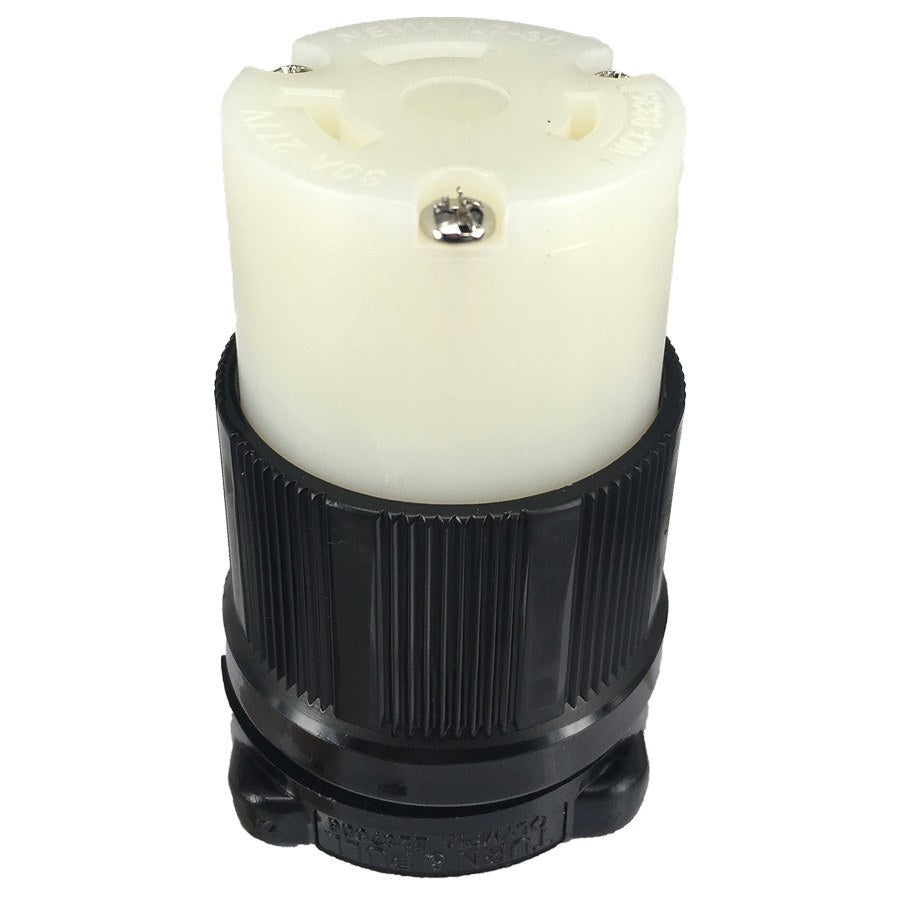

Morris 20451 L7-30C Locking Connector, 30A 277V
Description
Product Overview
The Morris 20451 is a NEMA L7-30C female (locking) connector rated 30A at 277V for 2-pole, 3-wire applications. It is built with a rugged nylon/polycarbonate housing and solid one-piece brass contacts.
Designed for cord and equipment connections in commercial and industrial settings, the 20451 includes a clear terminal chamber, heavy-duty brass terminal screws, cord strain relief, rubber grommet, and a grounding screw.
Key Features
- NEMA L7-30C configuration — female locking connector for 30A, 277V service
- Rugged nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
- Solid one-piece brass power contacts set in deep pockets for improved conductivity and reduced heat rise
- Heavy-duty brass combo-head terminal screws and clear terminal chamber for inspection
- Cord strain relief and rubber grommet to help seal and secure the cable; includes grounding screw
What this connector does
Direct answer: The Morris 20451 is a female NEMA L7-30C locking connector used to make secure 30A, 277V 2-pole, 3-wire power connections on cords or equipment.
The locking (twist-lock) configuration prevents accidental disconnection under load and is intended for commercial and industrial power connections that match the L7-30 standard.
- NEMA configuration: L7-30C (female)
- Poles/Wires: 2-pole, 3-wire (line, neutral, ground)
Recommended applications
Direct answer: Use the 20451 where a 30A, 277V locking connector is required for cords or equipment in commercial or industrial environments.
Typical uses include connecting power to equipment and extension cords that demand a locking connection at the specified voltage and amperage.
- Cord-mounted locking connections for commercial lighting, HVAC, and industrial equipment compatible with L7-30 receptacles
- Suitable where a locking mating connection is required to prevent unintended disconnection
Installation and wiring
Direct answer: Wire the connector by stripping the cord conductors, securing them under the brass terminal screws (line, neutral, and ground), and assembling the housing with the provided strain relief and grommet.
The clear terminal chamber permits visual inspection of conductor placement and termination before final assembly.
- Terminate conductors under heavy-duty brass combo-head terminal screws
- Use the cord strain relief and rubber grommet to secure and seal the cable entry
- Includes grounding screw for the equipment ground conductor
Materials and durability
Direct answer: The housing is molded from nylon/polycarbonate for impact, abrasion, sunlight, and chemical resistance; contacts are solid one-piece brass.
Brass contacts are set in deep pockets to maintain good contact pressure and reduce heat rise at rated current.
- Housing: nylon/polycarbonate — resists impact, abrasion, UV, and chemicals
- Contacts: solid one-piece brass in deep pockets for durability and conductivity
Electrical and mechanical specifications
Direct answer: Key electrical and configuration specifications identify the 20451 for proper selection and compatibility with L7-30 systems.
- NEMA Configuration: L7-30C (female)
- Amperage: 30A
- Voltage: 277V
- Poles/Wires: 2-pole, 3-wire
- Material highlights: Nylon/polycarbonate housing; brass power contacts
- Includes: clear terminal chamber, cord strain relief, rubber grommet, grounding screw
Before You Order
Confirm the model number and that a NEMA L7-30C female 30A, 277V connector is the correct configuration for your mating receptacle and application.
- Verify compatibility with the mating L7-30 plug/receptacle and the conductor size required for 30A service.
- If you need additional installation guidance or specification sheets, consult product documentation or a qualified electrician.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 20451 L7-30C Locking Connector, 30A 277V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| SKU | 20451; '20451 |
| Model / Handle | morris-20451-l7-30c-locking-connector |
| Type | Locking Connector (female) |
| NEMA Configuration | L7-30C |
| Ampere Rating | 30A |
| Voltage | 277V |
| Poles / Wires | 2-Pole, 3-Wire |
| Housing Material | Nylon / Polycarbonate |
| Contacts | Solid one-piece brass |
| Included Items | Clear terminal chamber, cord strain relief, rubber grommet, grounding screw |
