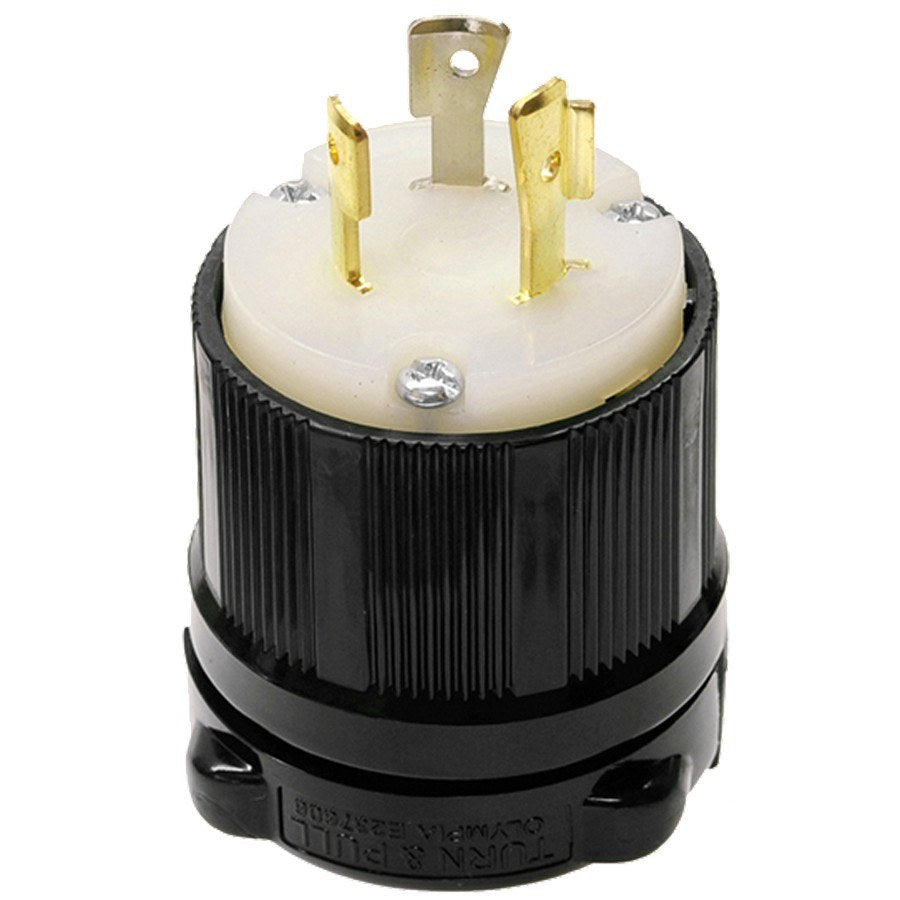

Morris 20447 L7-20P Locking Plug, 20A 277V

(No Ratings)
SKU: 20447
Price: $13.00
Free shipping on orders over $1,500

Description

Morris's 20447 is a 20A, 277V NEMA L7-20P locking plug (male, 2-pole 3-wire) with rugged nylon/polycarbonate construction that resists impact, abrasion, sunlight, and chemicals. All contacts are solid one-piece brass set in deep pockets for superior conductivity and reduced heat rise, with heavy-duty brass combo-head terminal screws and a clear terminal chamber for inspection.

Key Features

  • Rugged Nylon/Polycarbonate Construction Resists Impact, Abrasion, Sunlight, and Chemicals
  • Grooved Housing for Enhanced Grip
  • All Contacts Solid One-Piece Brass for Superior Conductivity and Reduced Heat Rise
  • Heavy-Duty Power Contacts Set in Deep Pockets
  • Heavy-Duty Brass Combo-Head Terminal Screws
  • Clear Terminal Chamber for Visual Inspection of Terminals
  • Cord Strain Relief and Rubber Grommet to Seal from the Environment
  • Includes Grounding Screw

Specifications

Brand Morris
Catalog No. 20447
Type Locking Plug
NEMA Configuration L7-20P
Amperage 20A
Voltage 277V
Poles/Wires 2-Pole 3-Wire
Configuration Male
Material Nylon/Polycarbonate, Brass Contacts

Applications

Used for 20A 277V NEMA L7-20P locking power connections on cords and equipment in commercial and industrial settings.

Installation

Strip the cord, connect the conductors to the brass terminal screws (line, neutral, and ground), and assemble the housing with strain relief.
