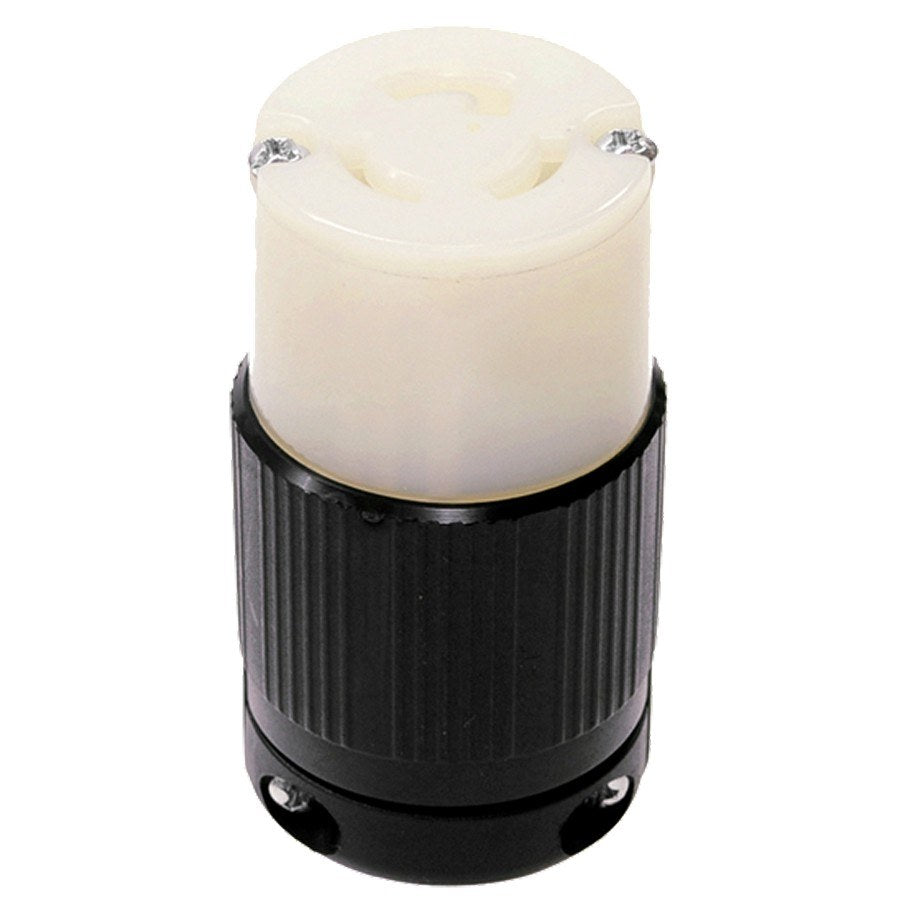

Morris 20445 L7-15C Locking Connector, 15A 277V

(No Ratings)
SKU: 20445
Price: $13.88
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20445 is a NEMA L7-15C female locking connector rated 15A at 277V for 2-pole, 3-wire applications. It combines a nylon/polycarbonate housing with solid one-piece brass power contacts.

Features include a grooved grip housing, clear terminal chamber for inspection, cord strain relief with rubber grommet, and an included grounding screw.

Key Features

  • NEMA configuration: L7-15C (female), 2-pole 3-wire
  • Electrical rating: 15A, 277V
  • Nylon/polycarbonate housing resistant to impact, abrasion, sunlight, and many chemicals
  • Solid one-piece brass contacts set in deep pockets
  • Clear terminal chamber for visual inspection and heavy-duty brass combo-head terminal screws
  • Cord strain relief and rubber grommet; includes grounding screw
  • Grooved housing for improved grip

What this connector does

The Morris 20445 is a female twist-lock connector in the NEMA L7-15C configuration intended for 15A, 277V, 2-pole 3-wire circuits. It provides a locking mating intended to help prevent accidental disconnection when used with the corresponding plug.

  • Provides a NEMA L7-15C locking (twist-lock) connection
  • Female connector intended as the mating end for L7-15 plugs or for termination on a cord

Where to use it

The 20445 is suitable for commercial and industrial applications that require a NEMA L7-15C locking connector rated at 15A/277V, such as cord sets and portable equipment connections where a secure twist-lock interface is needed.

  • Intended for cord and equipment power connections in commercial and industrial settings
  • For circuits rated 15A and 277V with 2-pole 3-wire wiring

Construction and durability

The connector housing is molded from nylon and polycarbonate and is described as resistant to impact, abrasion, sunlight, and chemicals. Power contacts are solid one-piece brass set in deep pockets and the unit includes heavy-duty brass terminal screws and a clear terminal chamber for inspection.

  • Nylon/polycarbonate housing
  • Solid one-piece brass contacts and brass combo-head terminal screws
  • Clear terminal chamber for visual inspection
  • Grooved housing for improved grip

Wiring and assembly overview

The connector is designed to terminate conductors under brass terminal screws and is supplied with cord strain relief, a rubber grommet, and a grounding screw. Follow installer or project documentation for specific strip lengths and torque values.

  • Terminates conductors under brass terminal screws
  • Includes cord strain relief, rubber grommet, and grounding screw

Key specifications

Reference the connector's core electrical and product identifiers to confirm suitability.

  • Brand: Morris
  • Catalog No.: 20445
  • NEMA Configuration: L7-15C (female)
  • Amperage: 15A
  • Voltage: 277V
  • Poles/Wires: 2-pole, 3-wire
  • Materials: Nylon/Polycarbonate housing; brass contacts

Before You Order

Verify the NEMA L7-15C female configuration and the 15A/277V rating match your system requirements before ordering.

  • Confirm compatibility with the mating L7-15 plug and circuit voltage/amperage

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20445 L7-15C Locking Connector, 15A 277V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20445; '20445
NEMA ConfigurationL7-15C (female)
Ampere Rating15A
Voltage277V
Poles / Wires2-pole, 3-wire
MaterialNylon/Polycarbonate housing; brass contacts
