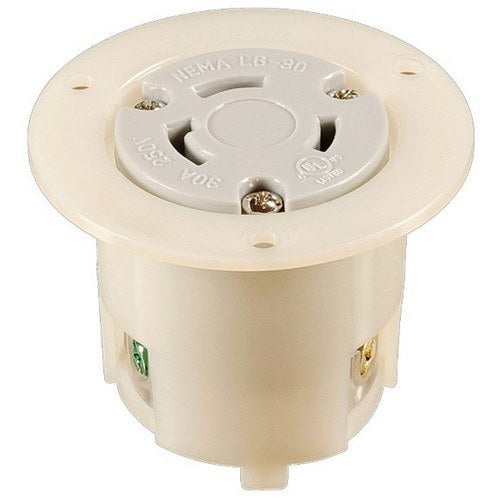

Morris 20442 L6-30R Recessed Locking Receptacle, 30A 250V

Product Overview

The Morris 20442 is a female NEMA L6-30R recessed locking receptacle rated 30A and 250V. Its 2-pole, 3-wire configuration provides a locking power connection that sits flush with a panel or enclosure.

The flanged receptacle has a nylon/polycarbonate housing, one-piece brass contacts, heavy-duty combo-head terminal screws, and a clear terminal chamber for visual inspection.

Key Features

• NEMA L6-30R configuration, rated 30A and 250V
• Recessed, flanged design for flush panel or enclosure mounting
• Nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
• One-piece brass contacts set in deep pockets
• Clear terminal chamber and included grounding screw

L6-30R Configuration and Electrical Rating

The Morris 20442 is a 30A, 250V NEMA L6-30R receptacle with a female, 2-pole, 3-wire configuration. It is a recessed locking receptacle for adding an L6-30R power point to a compatible equipment panel, generator set, or enclosure.

Housing, Contacts, and Terminals

The housing is made of nylon/polycarbonate and has grooved surfaces for grip. Morris describes the housing as resistant to impact, abrasion, sunlight, and chemicals.

Solid one-piece brass contacts are set in deep pockets. Heavy-duty brass combo-head terminal screws and a clear terminal chamber provide access to the terminals and visibility for inspection. A grounding screw is included.

Recessed Panel and Enclosure Mounting

The flanged design is intended for flush mounting in a panel or enclosure. The product description identifies equipment panels, generator sets, and enclosures as applications for this receptacle.

• The described installation involves making a panel opening, securing the flange with mounting hardware, and connecting conductors to the brass terminals.

Before You Order

Confirm that the L6-30R configuration, 30A rating, 250V rating, and recessed mounting style match your requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20442 L6-30R Recessed Locking Receptacle, 30A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
