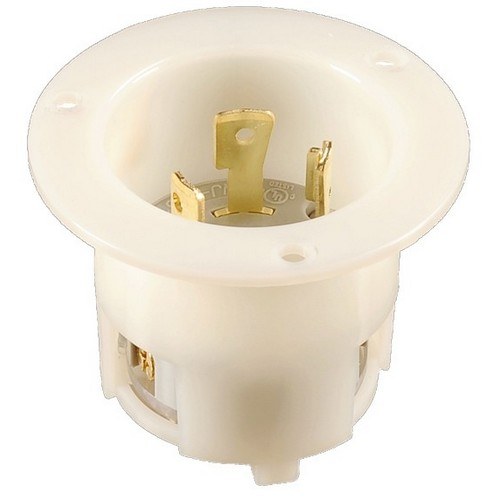

Morris 20441 L6-30P Recessed Locking Plug, 30A 250V

Product Overview

The Morris 20441 is a 30A, 250V NEMA L6-30P recessed locking plug with a male, 2-pole, 3-wire configuration. Its flange is designed for flush mounting in an equipment panel or enclosure.

The housing is made of nylon and polycarbonate, with one-piece brass contacts and a clear terminal chamber for visual inspection. The plug is intended for adding a recessed locking power point to panels, generator sets, and enclosures.

Key Features

• NEMA L6-30P configuration; rated 30A and 250V
• Male, 2-pole, 3-wire recessed design with flange for flush mounting
• Nylon/polycarbonate housing described as resistant to impact, abrasion, sunlight, and chemicals
• One-piece brass contacts set in deep pockets
• Heavy-duty brass combo-head terminal screws and a clear terminal chamber
• Grooved housing for grip; includes a grounding screw

Electrical rating and NEMA configuration

The Morris 20441 has a NEMA L6-30P configuration and is rated 30A at 250V. It is a male, 2-pole, 3-wire recessed locking plug.

Recessed mounting for panels and enclosures

The flanged body is designed for flush mounting in a panel or enclosure. Listed applications include equipment panels, generator sets, and enclosures where a recessed 30A, 250V locking power point is needed.

Housing, contacts, and terminal access

The housing combines nylon and polycarbonate and has a grooved surface for grip. The housing material is described as resistant to impact, abrasion, sunlight, and chemicals.

One-piece brass contacts are set in deep pockets. Heavy-duty brass combo-head terminal screws and a clear terminal chamber provide access to and visibility of the terminals; a grounding screw is included.

Before You Order

Confirm that the Morris 20441 model number, NEMA L6-30P configuration, and 30A, 250V rating match the intended application.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20441 L6-30P Recessed Locking Plug, 30A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
