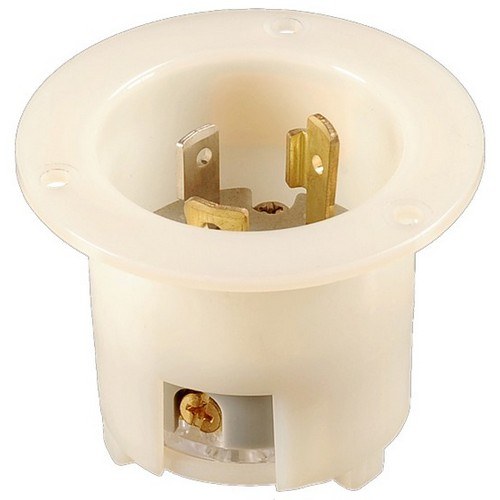

Morris 20434 L5-30P Recessed Locking Plug, 30A 125V
Description
Product Overview
The Morris 20434 is a male, 2-pole, 3-wire NEMA L5-30P recessed locking plug rated 30A and 125V. Its flanged design provides a flush-mounted locking power point for equipment panels, generator sets and enclosures.
The plug has a nylon/polycarbonate housing, solid one-piece brass contacts and a clear terminal chamber for visual inspection. Its grooved housing is designed to provide a more secure grip.
Key Features
- NEMA L5-30P configuration; 30A, 125V; 2-pole, 3-wire
- Flanged design for flush panel or enclosure mounting
- One-piece brass contacts set in deep pockets
- Heavy-duty brass combination-head terminal screws and grounding screw
- Clear terminal chamber for visual inspection
- Nylon/polycarbonate construction described as resistant to impact, abrasion, sunlight and chemicals
L5-30P Configuration and Electrical Rating
The Morris 20434 has a male NEMA L5-30P configuration rated 30A at 125V, with a 2-pole, 3-wire arrangement. Check that this configuration matches the equipment and connection required for your installation.
Flush Panel and Enclosure Mounting
The 20434 is a flanged, recessed locking plug intended to mount flush in a panel or enclosure. Listed uses include equipment panels, generator sets and enclosures.
- The catalog installation description calls for a panel opening, flange mounting with the provided hardware, and conductor termination at the brass terminals.
Housing and Contact Details
The plug combines a nylon/polycarbonate housing with solid one-piece brass contacts set in deep pockets. The housing is described as resisting impact, abrasion, sunlight and chemicals; no specific environmental rating is provided.
- Grooved housing for enhanced grip
- Heavy-duty brass combination-head terminal screws
- Clear terminal chamber for visual inspection
- Includes a grounding screw
Before You Order
Confirm that the L5-30P configuration, 30A rating, 125V rating and recessed mounting style suit the equipment and panel or enclosure.
- Confirm the model number and quantity required before ordering.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 20434 L5-30P Recessed Locking Plug, 30A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 20434 |
| Product Type | Recessed locking plug |
| NEMA Configuration | L5-30P |
| Ampere Rating | 30A |
| Rated Voltage | 125V |
| Poles and wires | 2-pole, 3-wire |
| Configuration | Male, flush/recessed |
| Housing Material | Nylon/polycarbonate |
| Contact Material | Brass |
