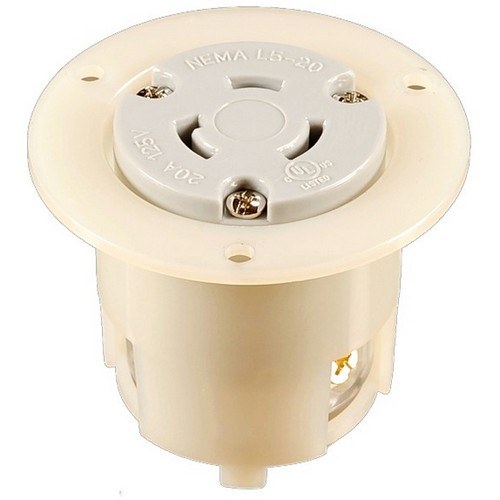

Morris 20433 L5-20R Recessed Locking Receptacle, 20A 125V

(No Ratings)
SKU: 20433
Price: $13.82
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20433 is a flanged, recessed NEMA L5-20R locking receptacle (female) rated 20A, 125V for flush mounting in equipment panels, gensets, and enclosures.

Constructed of rugged nylon/polycarbonate with solid one-piece brass contacts set in deep pockets, this device includes heavy-duty combo-head terminal screws, a clear terminal chamber for inspection, and a grounding screw.

Key Features

  • NEMA configuration: L5-20R (locking receptacle), female, recessed/flanged for flush panel mounting
  • Electrical rating: 20A, 125V; 2-pole, 3-wire
  • Housing: rugged nylon/polycarbonate resistant to impact, abrasion, sunlight, and chemicals
  • Contacts: solid one-piece brass power contacts set in deep pockets for reliable conductivity
  • Terminals: heavy-duty brass combo-head screws and clear terminal chamber for visual inspection
  • Includes grounding screw

What this receptacle is for

Direct answer: The Morris 20433 provides a flush-mounted, locking 20A/125V power outlet using the NEMA L5-20R configuration for equipment panels, gensets, and enclosures.

Use cases include adding a secure twist-lock power connection to panels and enclosures where a flush or recessed mounting style is desired.

  • NEMA L5-20R locking configuration for twist-lock plug engagement
  • Female (receptacle) device intended for flush panel or enclosure mounting

Materials and durability

Direct answer: The unit combines a rugged nylon/polycarbonate housing with solid one-piece brass contacts to resist mechanical and environmental wear while maintaining reliable conductivity.

Design elements such as grooved housing and deep-contact pockets support grip and secure contact retention.

  • Housing resists impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts reduce heat rise and improve conductivity
  • Grooved housing for enhanced grip

Mounting and wiring

Direct answer: The 20433 is flanged/recessed for flush mounting in panels or enclosures and terminates via heavy-duty brass combo-head terminal screws within a clear terminal chamber.

Installers should cut the appropriate panel opening, secure the flange with mounting hardware, and land conductors on the brass terminals; a grounding screw is provided for equipment grounding.

  • Flanged for flush panel or enclosure mounting
  • Clear terminal chamber allows visual inspection of terminations
  • Heavy-duty brass combo-head terminal screws for conductor connections
  • Includes grounding screw

Electrical and mechanical specifications

Direct answer: Refer to these core specifications to confirm compatibility with your electrical design and mating plugs.

  • Brand: Morris
  • Catalog number: 20433
  • NEMA configuration: L5-20R
  • Amperage: 20A
  • Voltage: 125V
  • Poles/Wires: 2-pole, 3-wire
  • Configuration: Female, recessed/flush (flanged)
  • Materials: Nylon/polycarbonate housing; brass contacts

Before You Order

Confirm the model number and quantity required before ordering. Verify that NEMA L5-20R (20A, 125V) matches the mating plug and the intended electrical circuit.

  • This product is a recessed (flanged) panel-mount female locking receptacle — ensure panel cutout and flange mounting fit your enclosure.
  • Verify conductor size and termination requirements for connection to the heavy-duty brass terminal screws.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20433 L5-20R Recessed Locking Receptacle, 20A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20433; '20433
TypeRecessed Locking Receptacle
NEMA ConfigurationL5-20R
Ampere Rating20A
Voltage125V
Poles / Wires2-Pole 3-Wire
ConfigurationFemale, Flush/Recessed (Flanged)
MaterialNylon/Polycarbonate housing; Brass contacts
Included ItemsGrounding screw
