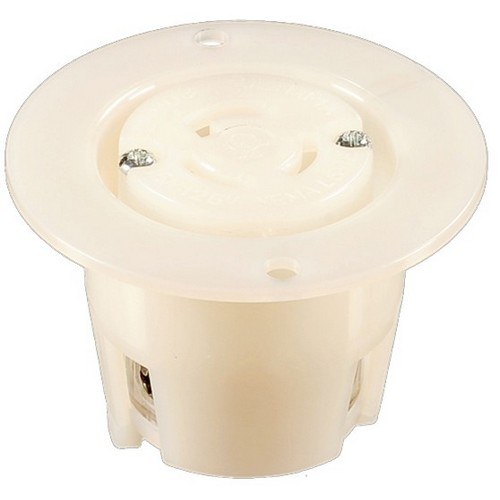

Morris 20429 L5-15R Recessed Locking Receptacle, 15A 125V

(No Ratings)
SKU: 20429
Price: $11.56
Free shipping on orders over $1,500

Description

Product Overview

The Morris 20429 is a recessed (flanged) NEMA L5-15R locking receptacle rated 15A, 125V for flush mounting on equipment panels and enclosures.

Constructed with a rugged nylon/polycarbonate housing and solid one-piece brass contacts, this female L5-15R provides durable twist-lock power connections with a clear terminal chamber for visual inspection.

Key Features

  • NEMA configuration: L5-15R (locking female)
  • Electrical rating: 15A, 125V; 2-pole, 3-wire
  • Rugged nylon/polycarbonate housing resistant to impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets for reliable conductivity
  • Heavy-duty brass combo-head terminal screws
  • Clear terminal chamber for visual inspection
  • Flanged design for flush panel or enclosure mounting; includes grounding screw

Function and intended use

This recessed locking receptacle provides a flush, twist-lock power inlet for equipment panels, generator sets, and enclosures where a NEMA L5-15R connection is required. It accepts a mating L5-15 plug to establish a secure 2-pole, 3-wire connection at 15A and 125V.

  • Adds a flush L5-15R power point to panels and enclosures
  • Designed for applications requiring a locking (twist-lock) connection to prevent accidental disconnects

Construction and materials

The 20429 uses a nylon/polycarbonate housing engineered for impact, abrasion, UV and chemical resistance. Contacts are solid one-piece brass, set in deep pockets to provide reliable conductivity and reduced heat rise.

  • Housing: rugged nylon/polycarbonate
  • Contacts: solid one-piece brass
  • Features a grooved housing for enhanced grip

Mounting and installation

The flanged (recessed) design is intended for flush panel or enclosure mounting. Installers cut the panel opening, secure the flange with mounting hardware, and terminate conductors on the heavy-duty brass combo-head terminal screws. A clear terminal chamber allows visual inspection of terminations. A grounding screw is included.

  • Flush/recessed (flanged) mounting for panels and enclosures
  • Heavy-duty combo-head terminal screws for conductor termination
  • Clear terminal chamber for visual inspection
  • Includes grounding screw

Electrical specifications

Use this receptacle where a NEMA L5-15R 15A, 125V twist-lock female outlet is required. Confirm compatibility with the mating L5-15 plug and system wiring before installation.

  • NEMA configuration: L5-15R
  • Rating: 15A, 125V
  • Poles/Wires: 2-pole, 3-wire
  • Configuration: female, recessed/flush

Before You Order

Confirm the model number and the required quantity before ordering. Verify that a NEMA L5-15R 15A, 125V recessed (flanged) receptacle matches your panel cutout and the mating plug configuration.

  • Confirm panel cutout dimensions and flange fit before installation.
  • Verify electrical compatibility (15A, 125V; 2-pole, 3-wire) with your system.
  • Confirm the mating plug is a locking L5-15 plug.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 20429 L5-15R Recessed Locking Receptacle, 15A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU20429; '20429
Model / Handlemorris-20429-l5-15r-recessed-locking-receptacle
NEMA ConfigurationL5-15R
Ampere Rating15A
Voltage125V
Poles / Wires2-Pole, 3-Wire
MaterialNylon/Polycarbonate housing; brass contacts
Mounting TypeFlanged for flush panel or enclosure mounting
TerminalsHeavy-duty brass combo-head screws; clear terminal chamber
Included ItemsGrounding screw
