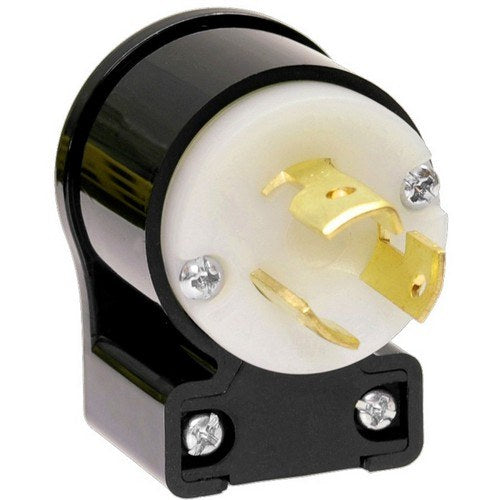

Morris 20426 L5-15P Right-Angle Locking Plug, 15A 125V

Morris's 20426 is a 15A, 125V NEMA L5-15P right-angle (90-degree) locking plug with rugged nylon/polycarbonate construction. Its angled body eases cord routing in tight spaces; all contacts are solid one-piece brass with heavy-duty combo-head terminal screws and a clear terminal chamber.

Key Features

• Rugged Nylon/Polycarbonate Construction Resists Impact, Abrasion, Sunlight, and Chemicals
• Grooved Housing for Enhanced Grip
• All Contacts Solid One-Piece Brass for Superior Conductivity and Reduced Heat Rise
• Heavy-Duty Power Contacts Set in Deep Pockets
• Heavy-Duty Brass Combo-Head Terminal Screws
• Clear Terminal Chamber for Visual Inspection of Terminals
• Cord Strain Relief and Rubber Grommet to Seal from the Environment
• Includes Grounding Screw
• 90-Degree Angled Body for Tight-Space Cord Routing

Specifications

Applications

Used for 15A 125V NEMA L5-15P locking connections where a right-angle cord exit saves space.

Installation

Strip the cord, connect line, neutral, and ground to the brass terminals, and assemble the angled housing with strain relief.
