Lutron Claro 20 A Tamper-Resistant Duplex Receptacle, Hot (SCR-20-DDTR-HT)

(No Ratings)
SKU: SCR-20-DDTR-HT
|
Delivery time: 10–21 days
Price: $61.77
Free shipping on orders over $1,500

Description

Product Overview

The Lutron SCR-20-DDTR-HT is a Claro-series 20 A tamper-resistant duplex receptacle rated for 125 V branch-circuit use. It installs in a standard device box and is finished in Lutron’s Hot color to match Claro wall plates and controls.

This receptacle provides tamper-resistant shutters to meet NEC requirements for child-safe outlets and accepts both screw-terminal and push-in back-wire connections for flexible, faster wiring.

Key Features

  • 20 A, 125 V duplex receptacle (model SCR-20-DDTR-HT)
  • Tamper-resistant shutters to meet NEC tamper-resistance requirements
  • Accepts screw-terminal and push-in back-wire connections
  • Decorator-style face with no visible mounting hardware
  • Color-matched to Lutron Claro wall plates and controls (wall plate sold separately)

Function and intended use

This Claro duplex receptacle provides a standard 20 A, 125 V outlet with tamper-resistant shutters. It is intended for residential branch-circuit outlets and any location where tamper-resistant receptacles are required by code.

Use this device for new-construction or replacement installations where a decorator-style, color-matched outlet is desired.

  • Rated: 20 A at 125 V
  • Tamper-resistant shutters for child-safety compliance

Wiring and installation notes

The receptacle wires into a standard device box and accepts both screw-terminal and push-in back-wire connections to accommodate different installer preferences and speed up wiring.

It features a decorator face with no visible mounting hardware; standard installation practices apply for securing the device to the box and making line/load/ground connections.

  • Connection types: screw-terminal and push-in back-wire
  • Installs in standard single-gang/device boxes

Finish and accessory compatibility

The SCR-20-DDTR-HT is finished in Lutron’s Hot. It is color-matched to Lutron Claro wall plates and controls; wall plates are sold separately.

Confirm finish compatibility with surrounding devices and select a matching Claro wall plate when specifying this receptacle for coordinated installations.

  • Finish: Hot
  • Wall plate: matching-finish Claro plates sold separately

Key specifications

Use the following specifications for planning and ordering. Confirm model number and required quantity before purchase.

  • Brand: Lutron
  • Model / SKU: SCR-20-DDTR-HT
  • Series: Claro
  • Amperage: 20 A
  • Voltage: 125 V
  • Tamper Resistant: Yes
  • Finish: Hot
  • UPC: 27557782333

Before You Order

Confirm the full model number (SCR-20-DDTR-HT) and the finish required before ordering to ensure compatibility with existing Claro devices and wall plates.

  • Wall plate is sold separately—order a matching Claro plate if aesthetic coordination is required.
  • Verify required quantity and that a 20 A, 125 V receptacle meets your circuit requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lutron Claro 20 A Tamper-Resistant Duplex Receptacle, Hot (SCR-20-DDTR-HT). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandLutron
SKUSCR-20-DDTR-HT
SeriesClaro
Product TypeReceptacle
Ampere Rating20 A
Voltage125 V
Tamper ResistantYes
FinishHot
UPC27557782333

Comments

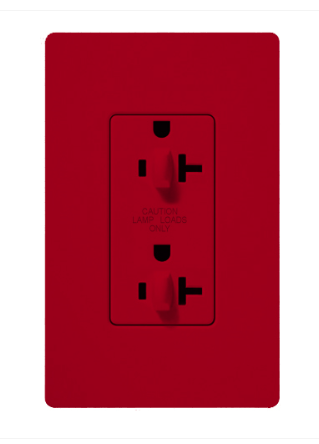

Lutron Claro 20 A tamper-resistant duplex receptacle in Hot
