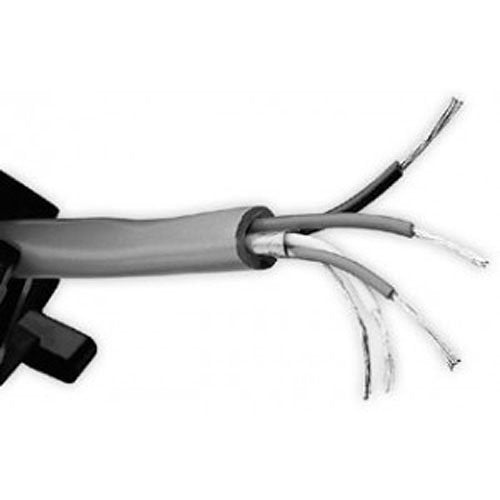

Lutron GRAFIK 5-Conductor Control Cable, Non-Plenum Rated (GRX-CBL-346S-500)

Product Overview

The Lutron GRX-CBL-346S-500 is a 5‑conductor control cable designed for GRAFIK system wiring. It is non‑plenum rated and intended to link control units, keypads and interfaces on the system bus.

This SKU is supplied as a single product offering (GRX-CBL-346S-500) and is targeted for commercial control-system runs where a 5‑conductor, non‑plenum cable is required.

Key Features

• Five conductors for GRAFIK control-system communications
• Non-plenum rated construction
• Intended for linking control units, keypads and interfaces on the system bus
• Manufacturer model/SKU: GRX-CBL-346S-500 (UPC: 27557367066)

Function

The GRX-CBL-346S-500 is a 5‑conductor control cable used to carry control and communication signals between components of Lutron GRAFIK systems.

It is intended specifically to link control units, keypads and interface devices on the system bus.

• Five individual conductors for system wiring
• Designed for use within the GRAFIK family of control products

Applications

This cable is used in commercial and integrated control installations where a 5‑conductor run is required to connect GRAFIK eye modules, QS control equipment, keypads, and other system bus devices.

Typical uses include internal wiring for control racks and trunk runs between system panels and user interface devices.

• Wiring Grafik Eye and QS control systems
• Linking control units and keypads
• System bus runs in commercial installations

Specifications

Use the following verified product details for planning and documentation.

• Brand: Lutron
• Model / SKU: GRX-CBL-346S-500
• Conductors: 5
• Finish / Rating: Non‑Plenum Rated
• Series: GRAFIK
• UPC: 27557367066
• Product type: Cable

Compatibility & Installation Notes

Confirm conductor count and plenum rating for your run before ordering and installation. This SKU is non‑plenum rated and should not be used in plenum air spaces where plenum‑rated cable is required by code.

Verify compatibility with the specific Lutron control units and keypads in your design—this cable is intended for GRAFIK system bus connections.

• Confirm model number and conductor requirements for each control device
• Do not substitute non‑plenum cable where plenum‑rated wiring is mandated

Before You Order

Confirm the model number (GRX-CBL-346S-500), required conductor count and whether a plenum‑rated cable is needed for your installation before ordering.

• Verify that non‑plenum cable is acceptable for the run and building code in the installation area
• Confirm the quantity and lengths required for system bus runs
